BURNS-WEILL

OVERVIEW - FIRST EFFORTS - FENTON - RP1G/B - RP2G/B



The 'Roy Plummer' model, RP1G 'Super Streamline'

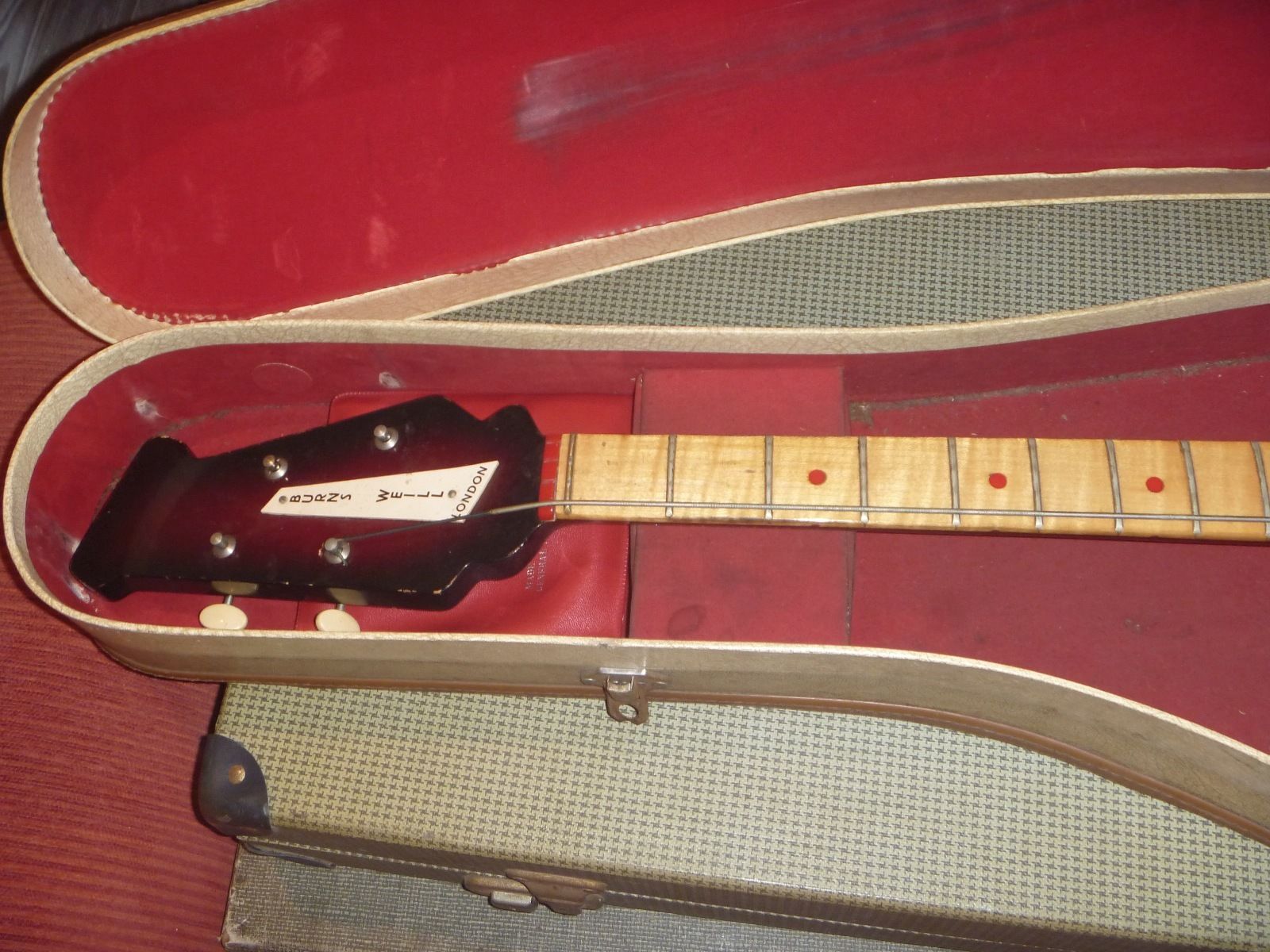

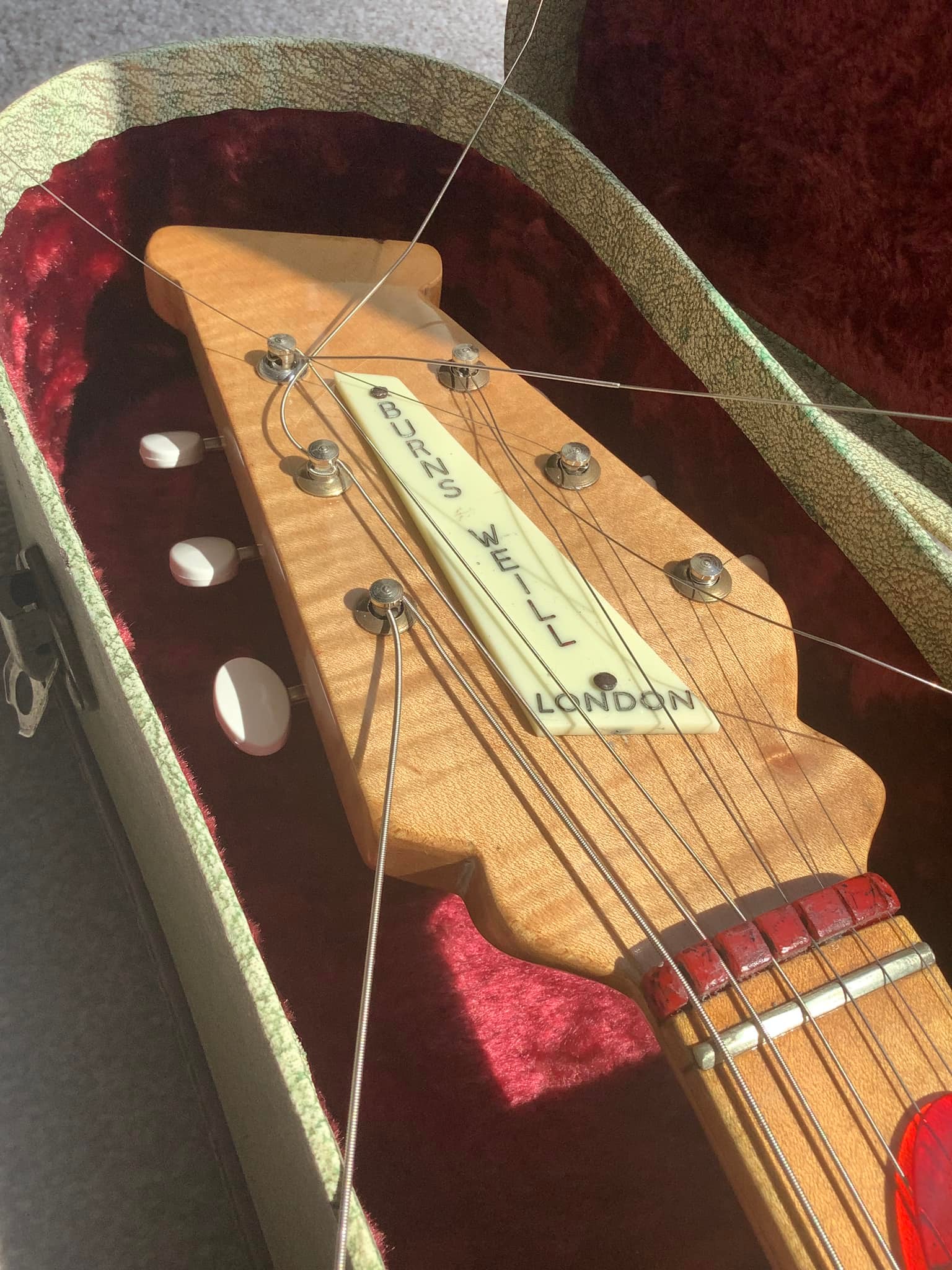

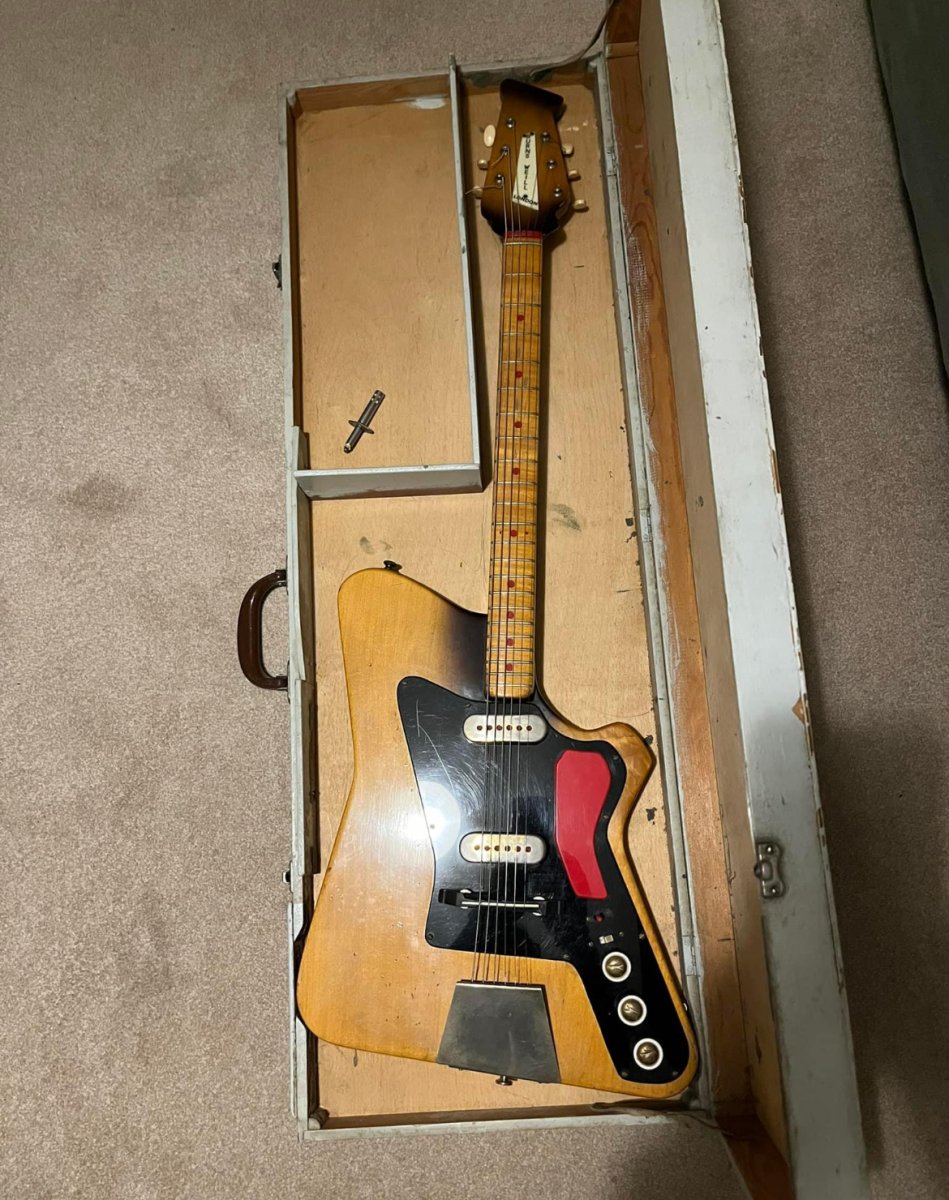

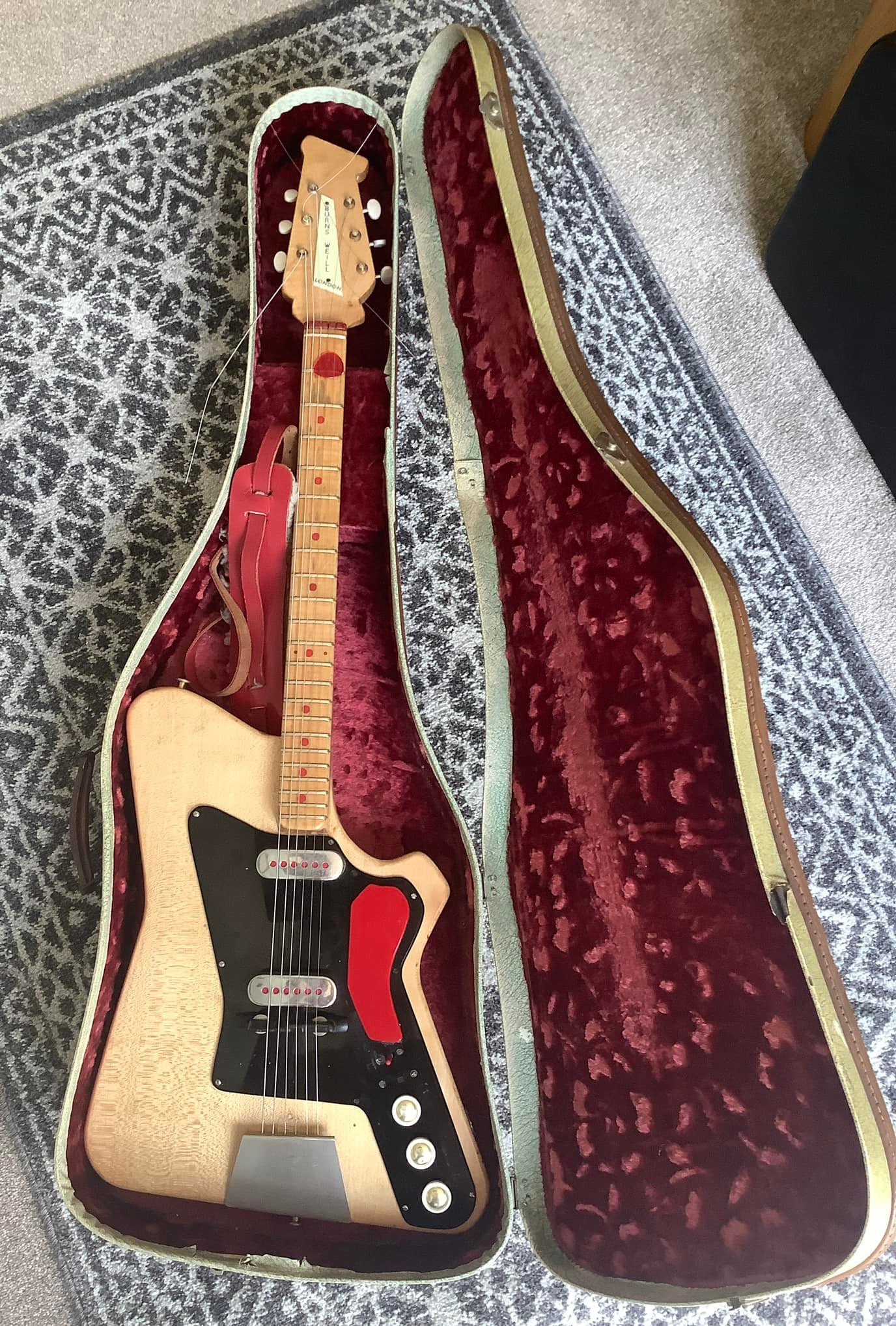

RP1G in original 'hard'-case, auctioned 2010. Note solid-topped pickups







Another 'Roy Plummer' 'Super Streamline' RP1G, with added Bigsby Vibrato unit

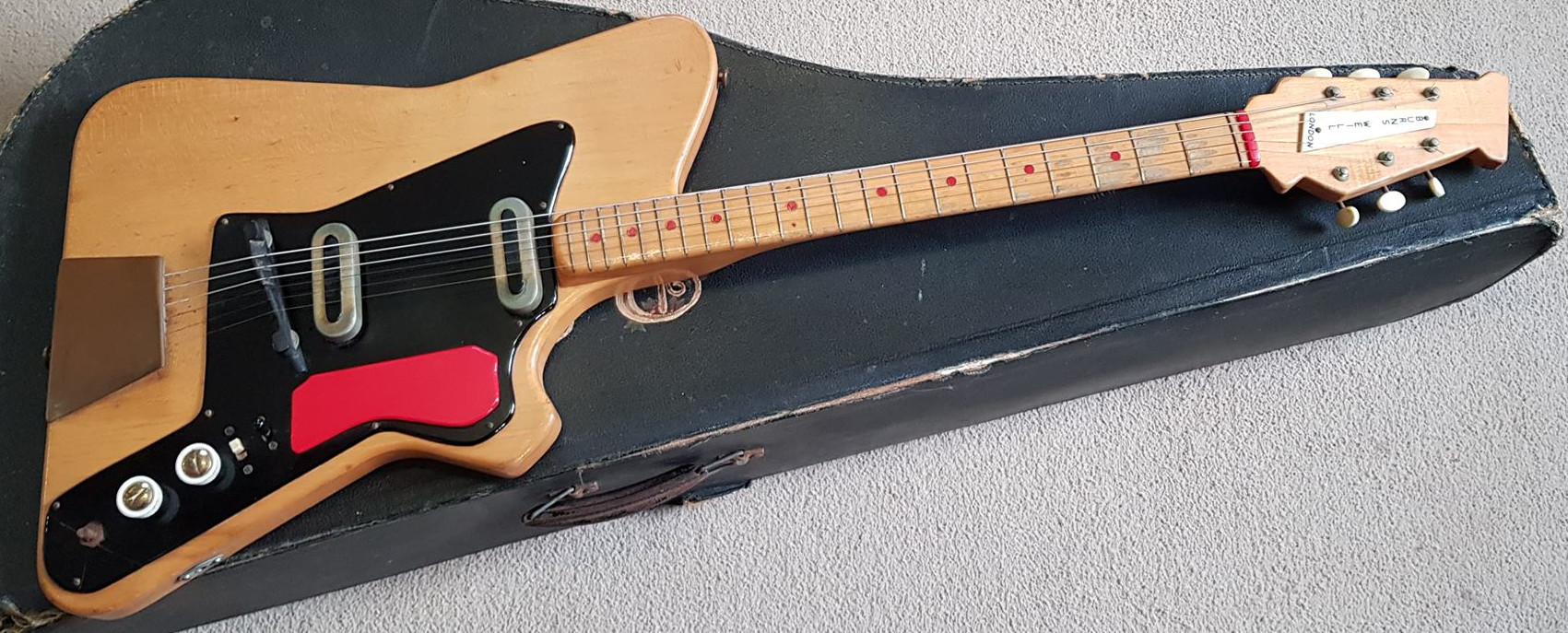

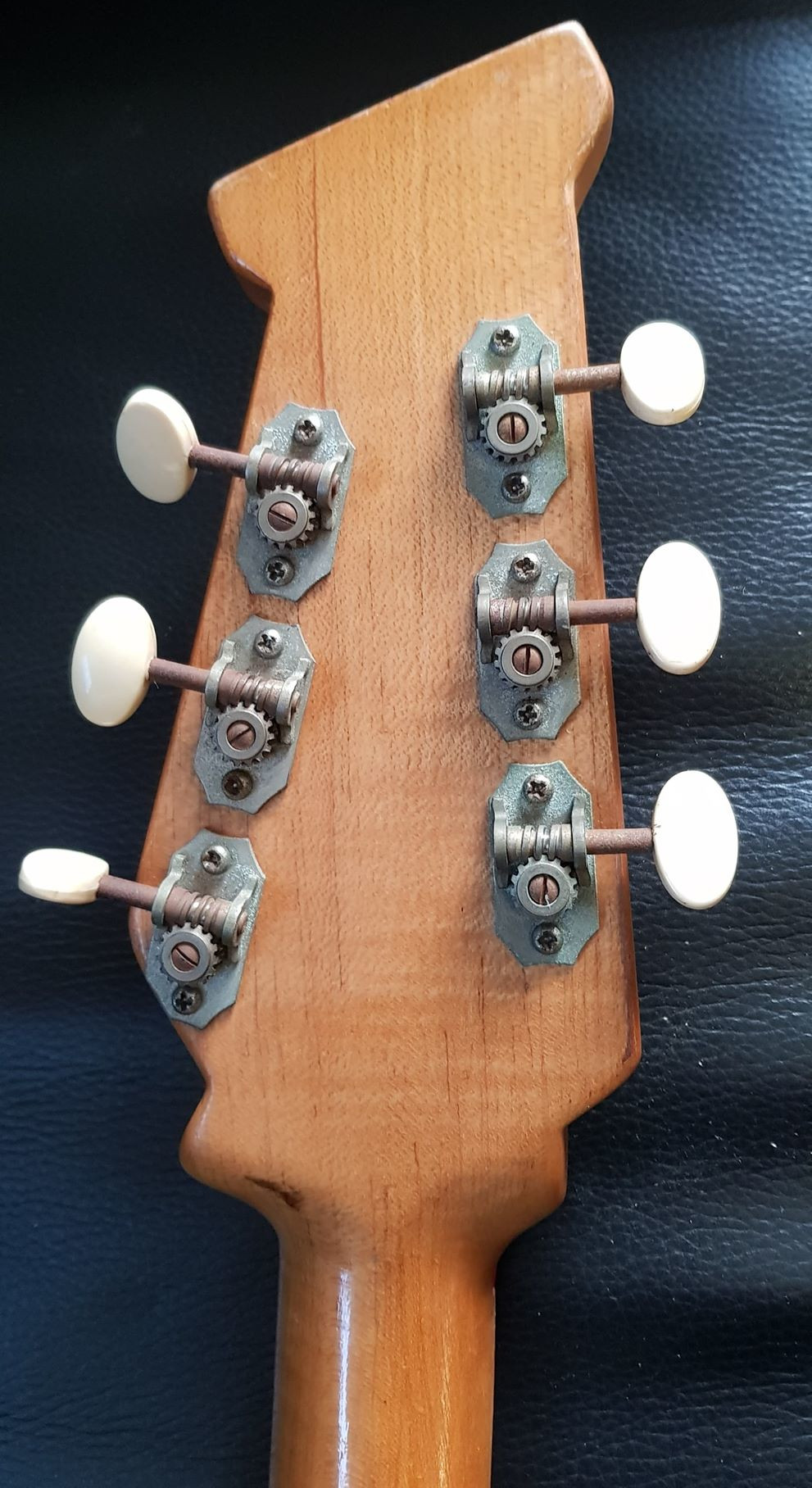

1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline



1959 Burns-Weill RP1G Super Streamline

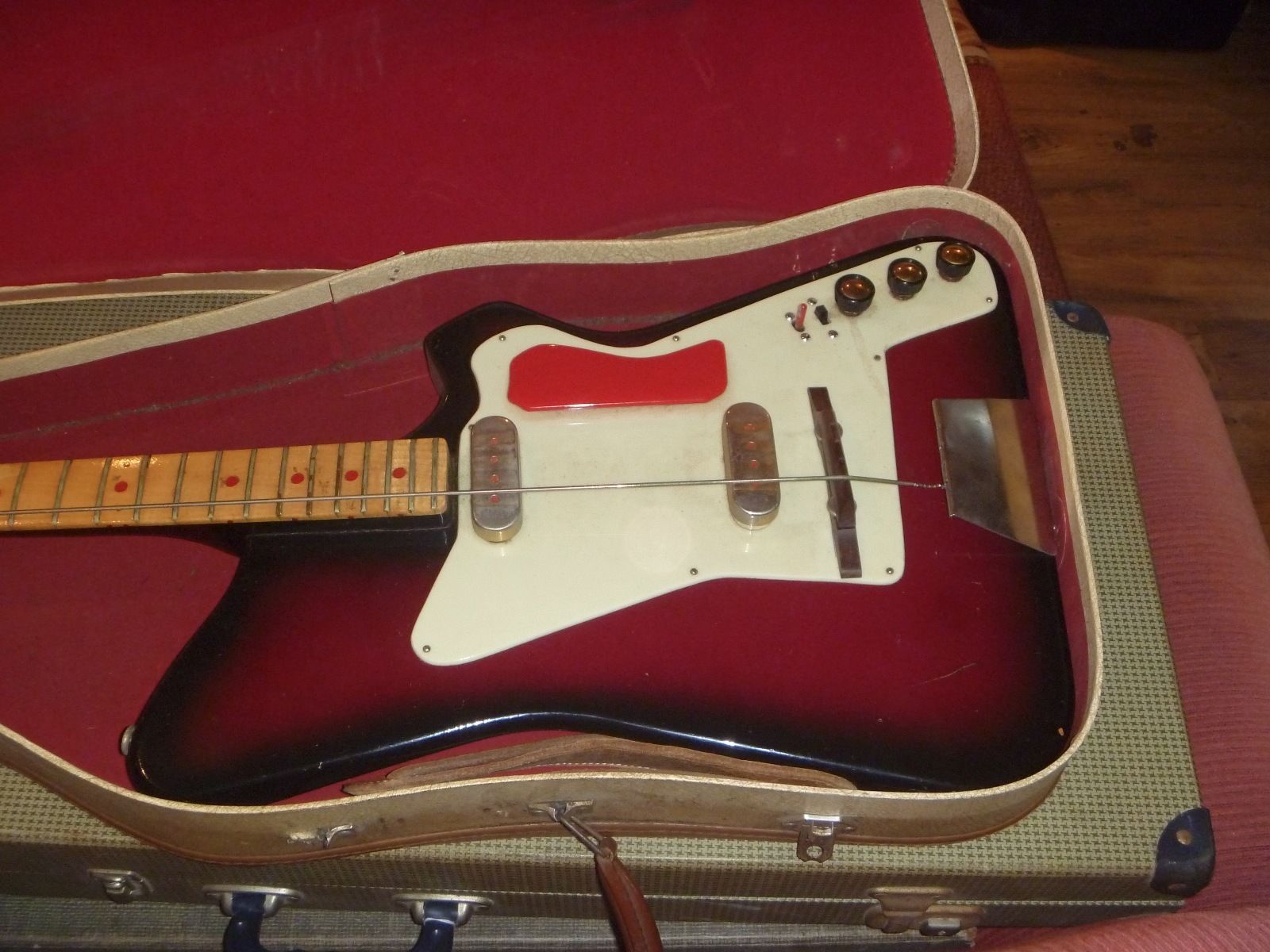

Another Burns Weill RP1G

with stripped finish, and replaced knobs

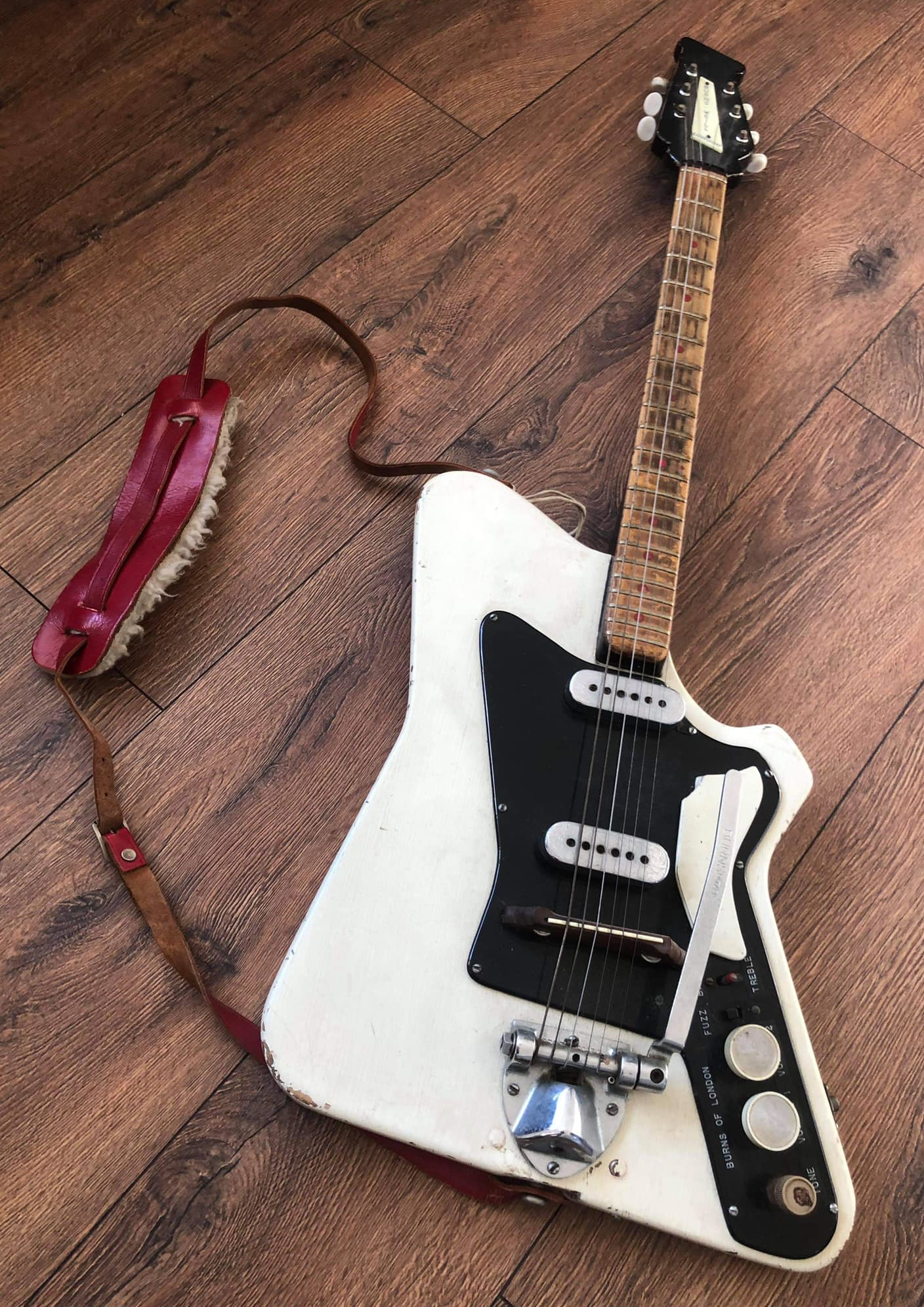

Rory Gallagher's RP1G

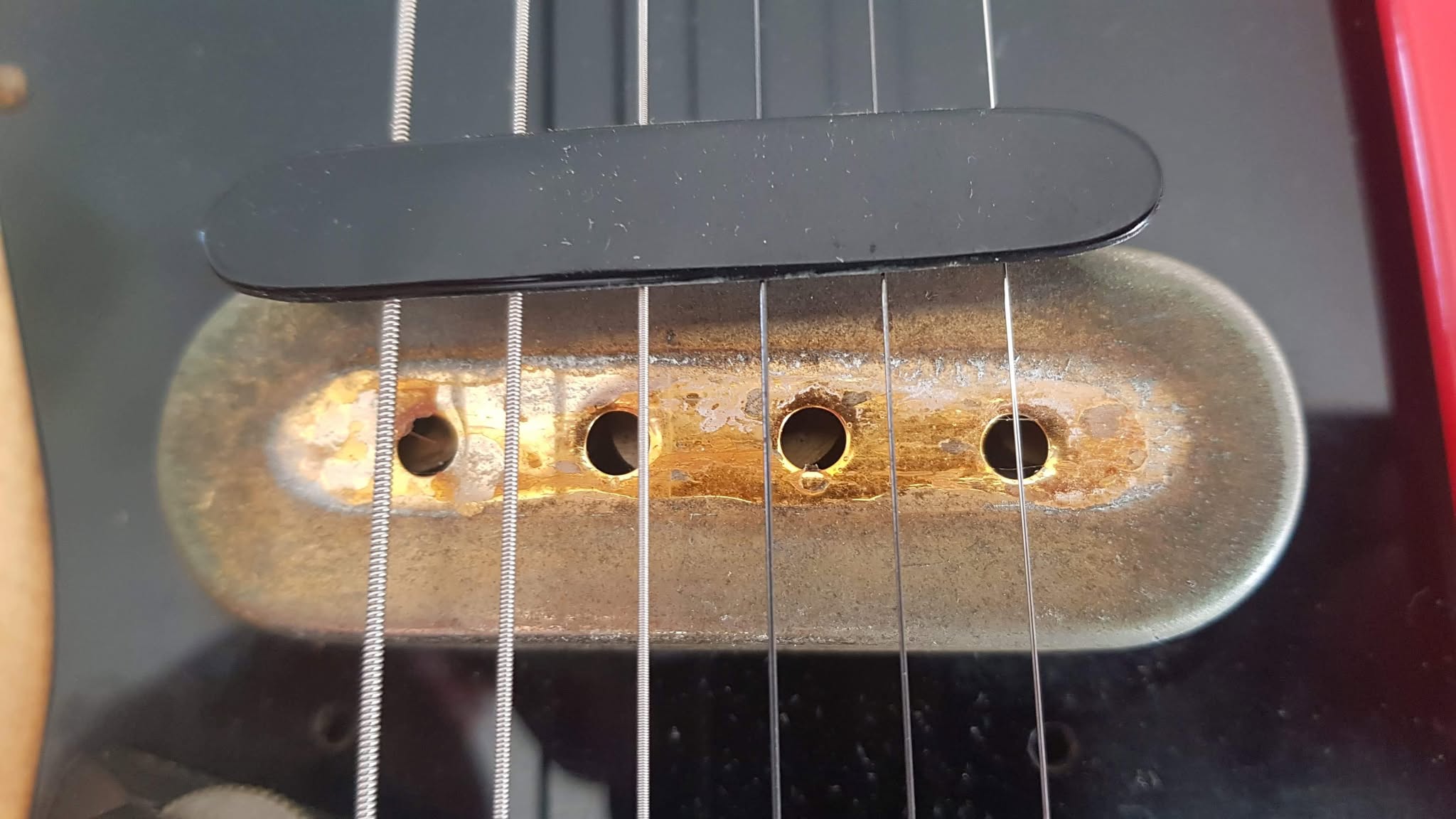

Note open polepiece-hole pickup covers, non-original bridge plus absent knobs and secondary pickguard.

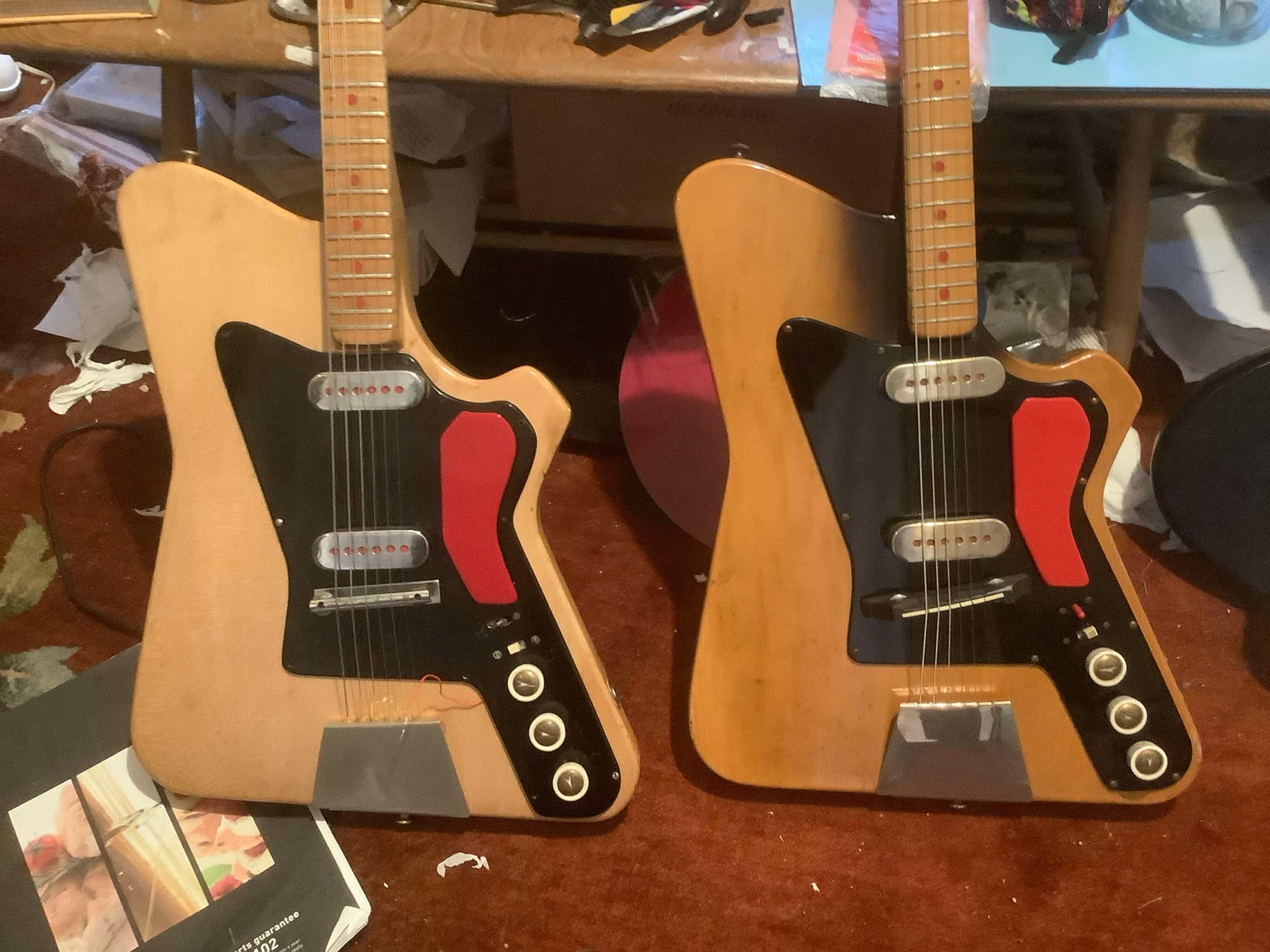

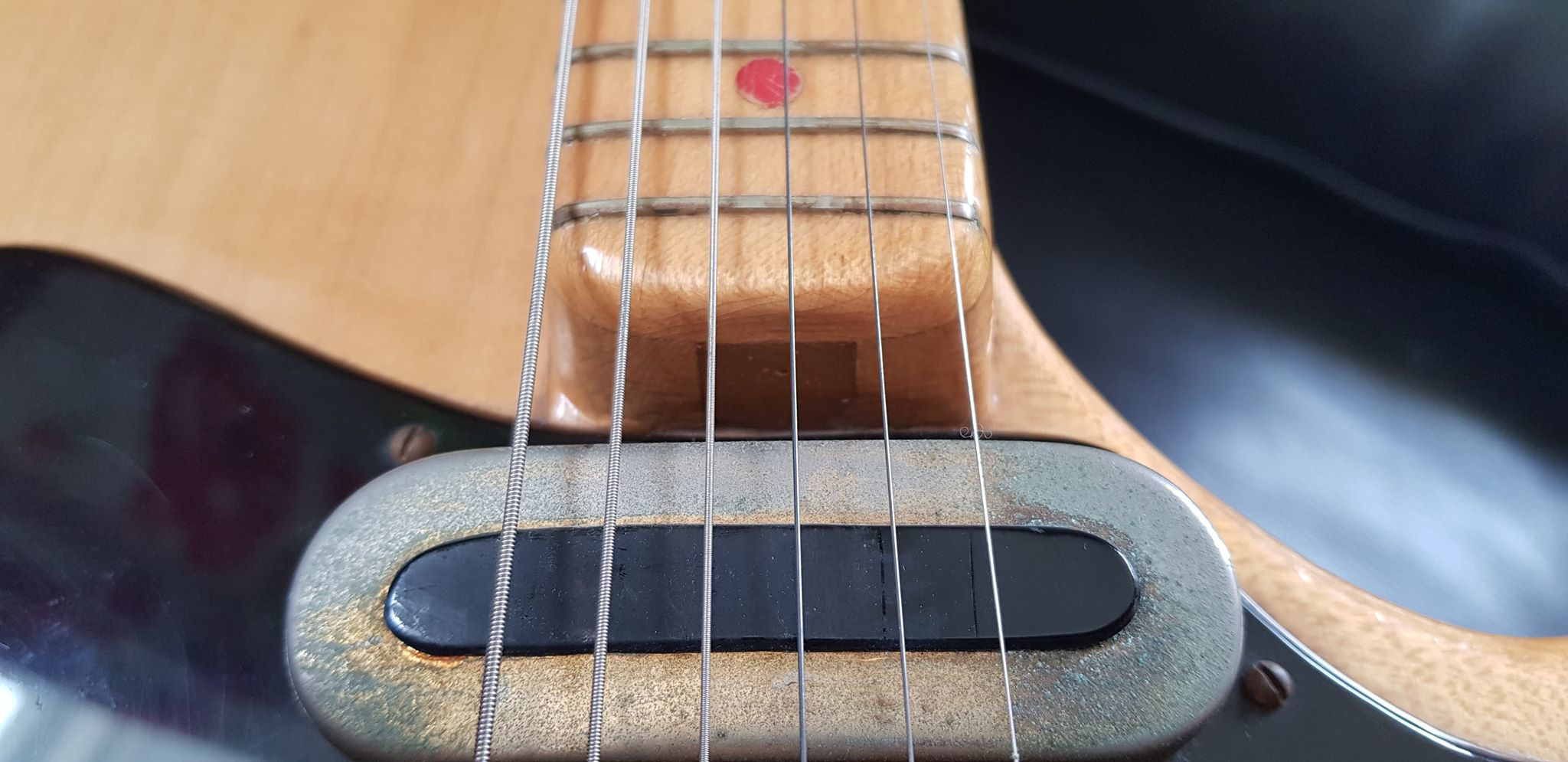

Ade Turner: "Mine's exactly the same as Rory Gallagher's - Only the pickups are slightly different (like the Atlas units with the solid black stripe down the middle). It actually had an early type punched label on the back (common on many early Weill's) marked RP1G. I also have a similar era Bass marked with RP1B with the same type label and have seen loads more with them on - or a witness mark where the label had been.


Don't get fooled into thinking there were quantities of these made. Jim Burns didn't have the best memory - and it was in his nature to "Big things up a bit". Also, in those days adverts were often placed in mags etc... to pre-empt sales rather than sell existing stock. ie: to gauge the interest and see if an item caught on or not. Electric solids were very scarce - so a customer could fairly easily be fobbed off for a bit while things were finished off. This is why the models varied quite a bit - as parts moved around to meet supply/demand.


To my knowledge only 3 of these guitars have ever surfaced - the one I have, Rory Gallagher's and there was also one which surfaced in the Newcastle area many years ago - but this one seems to have dropped off the radar. So, it might have been lost - or it may be the one that I have?

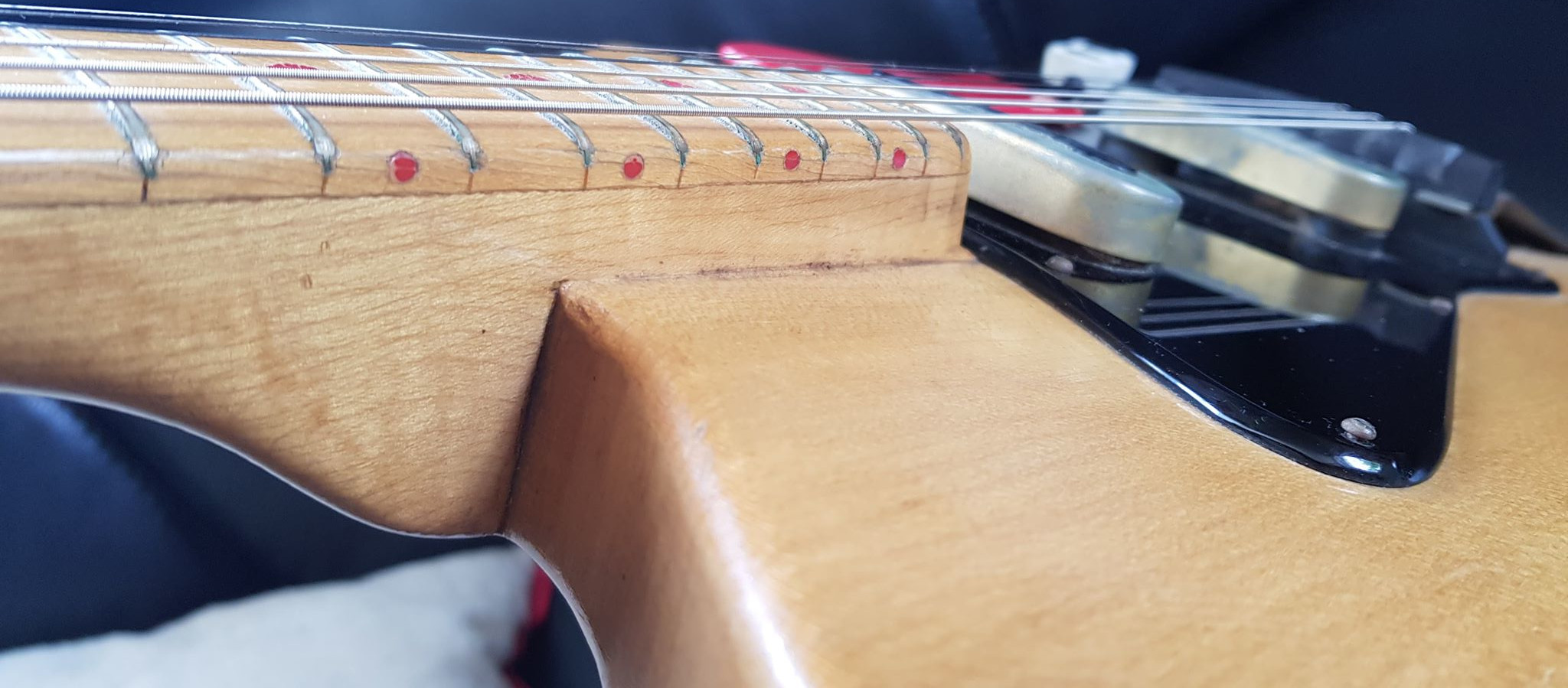

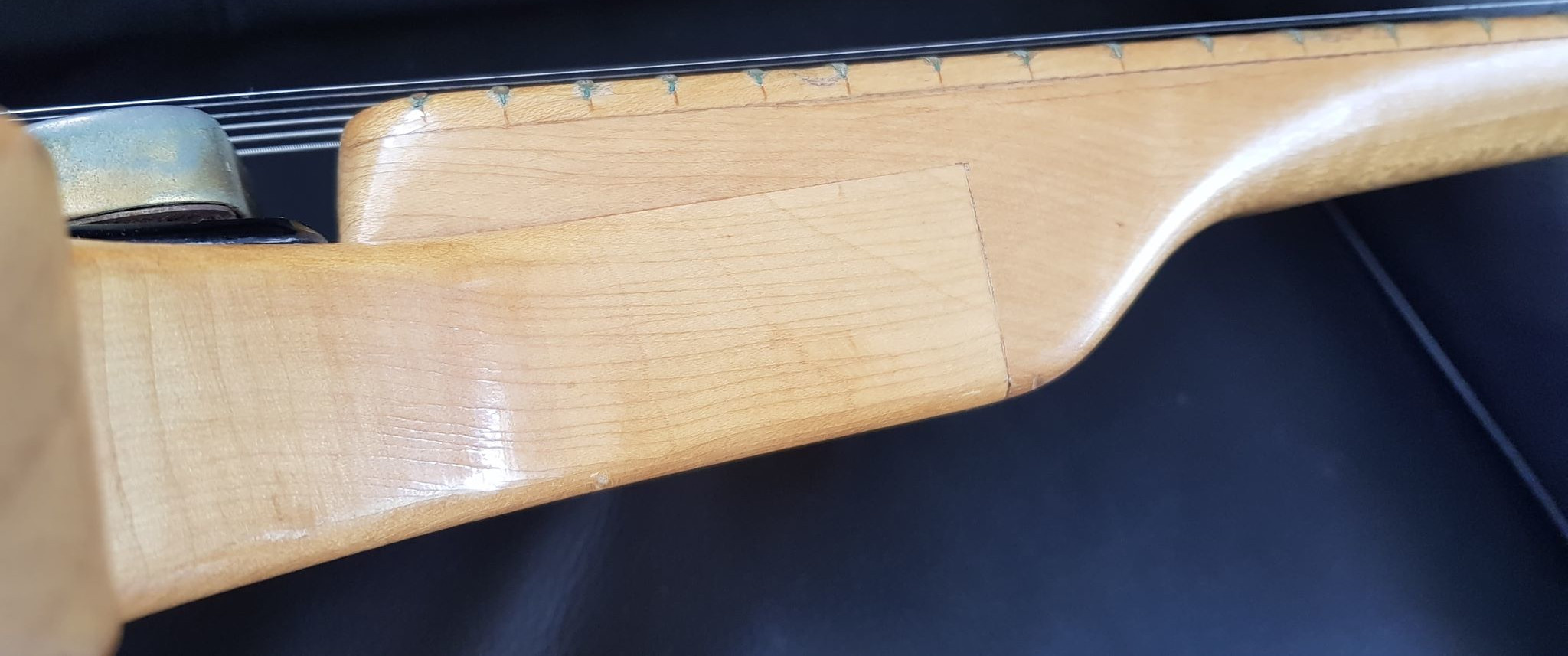

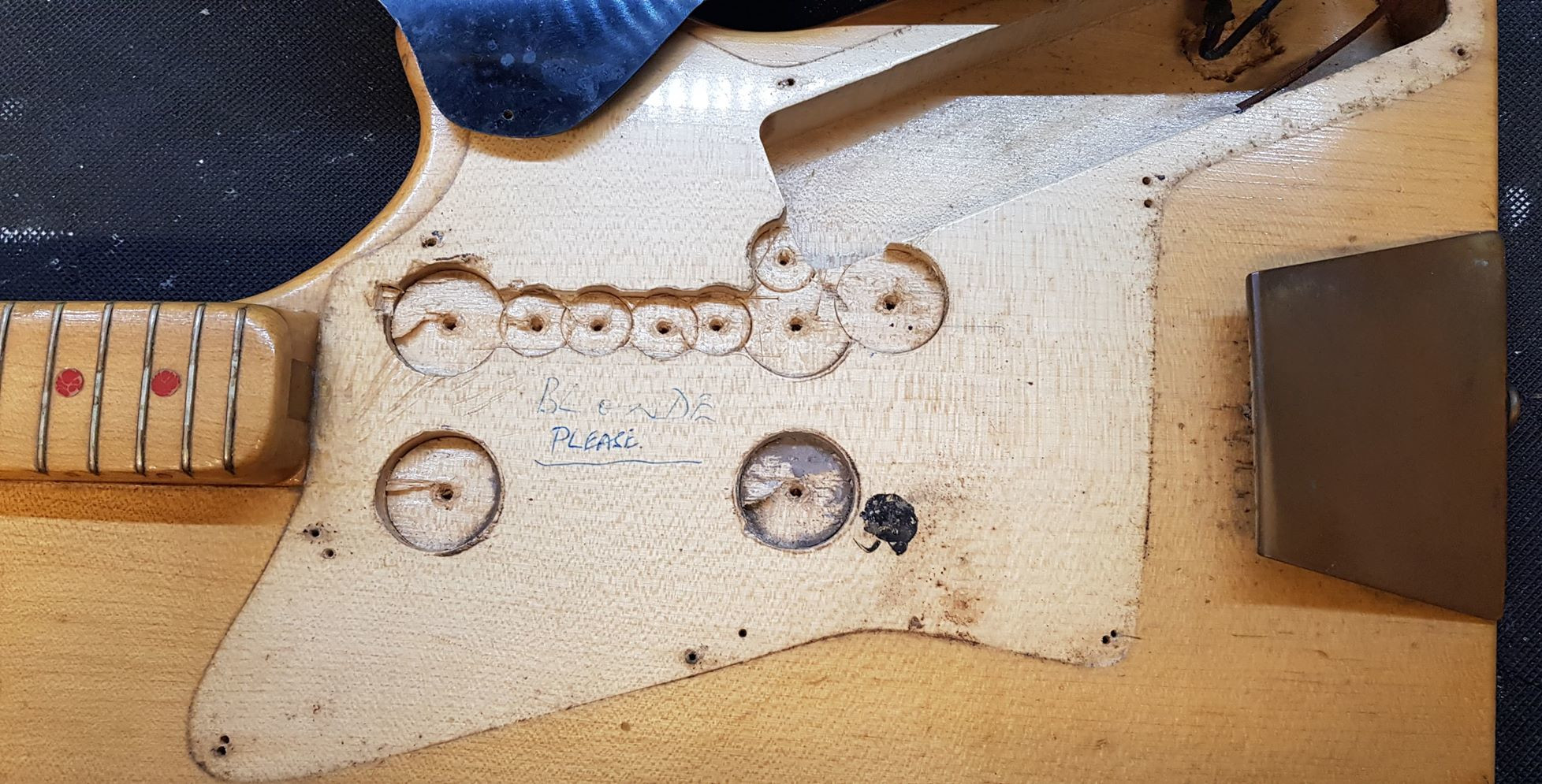

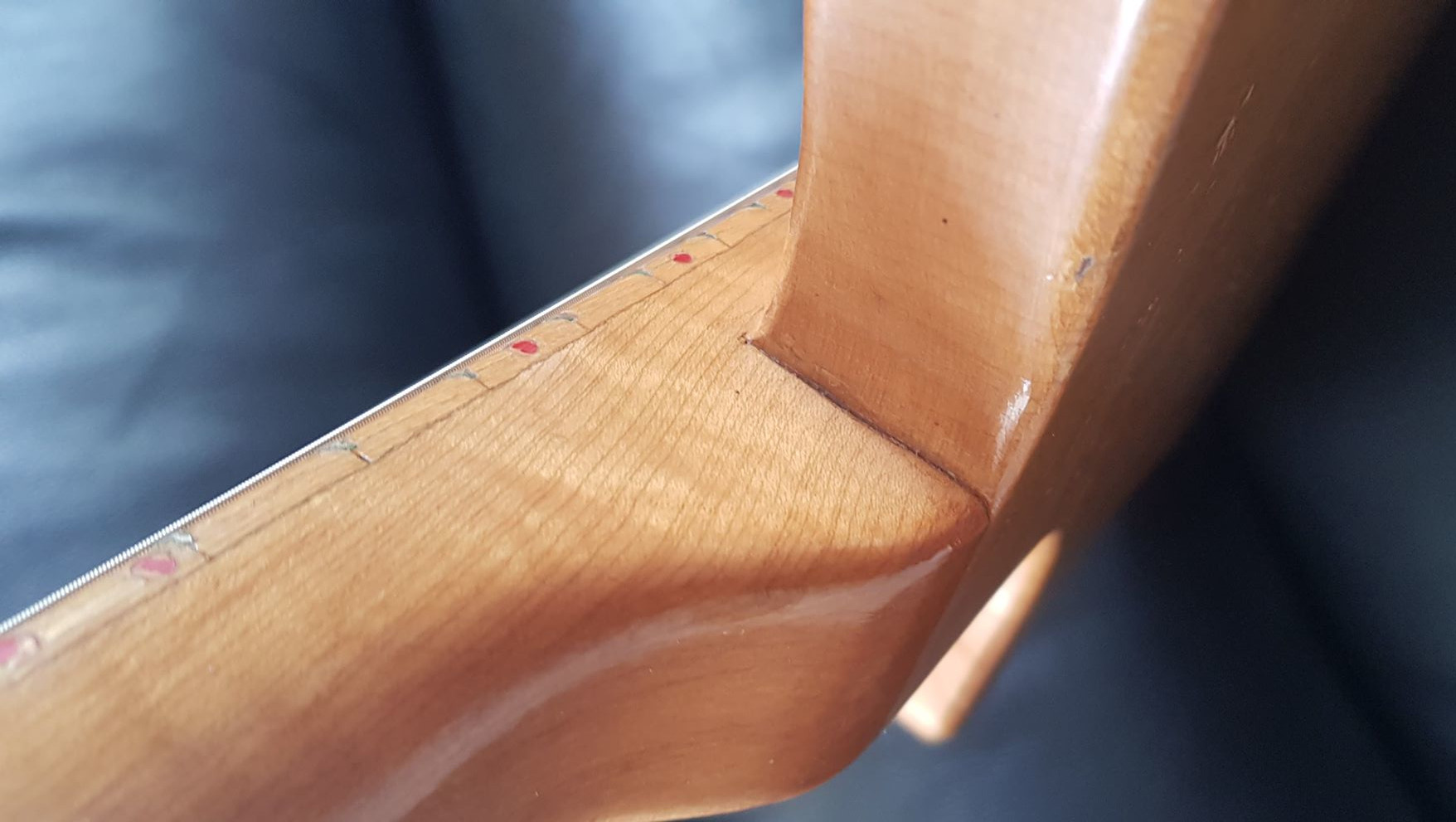

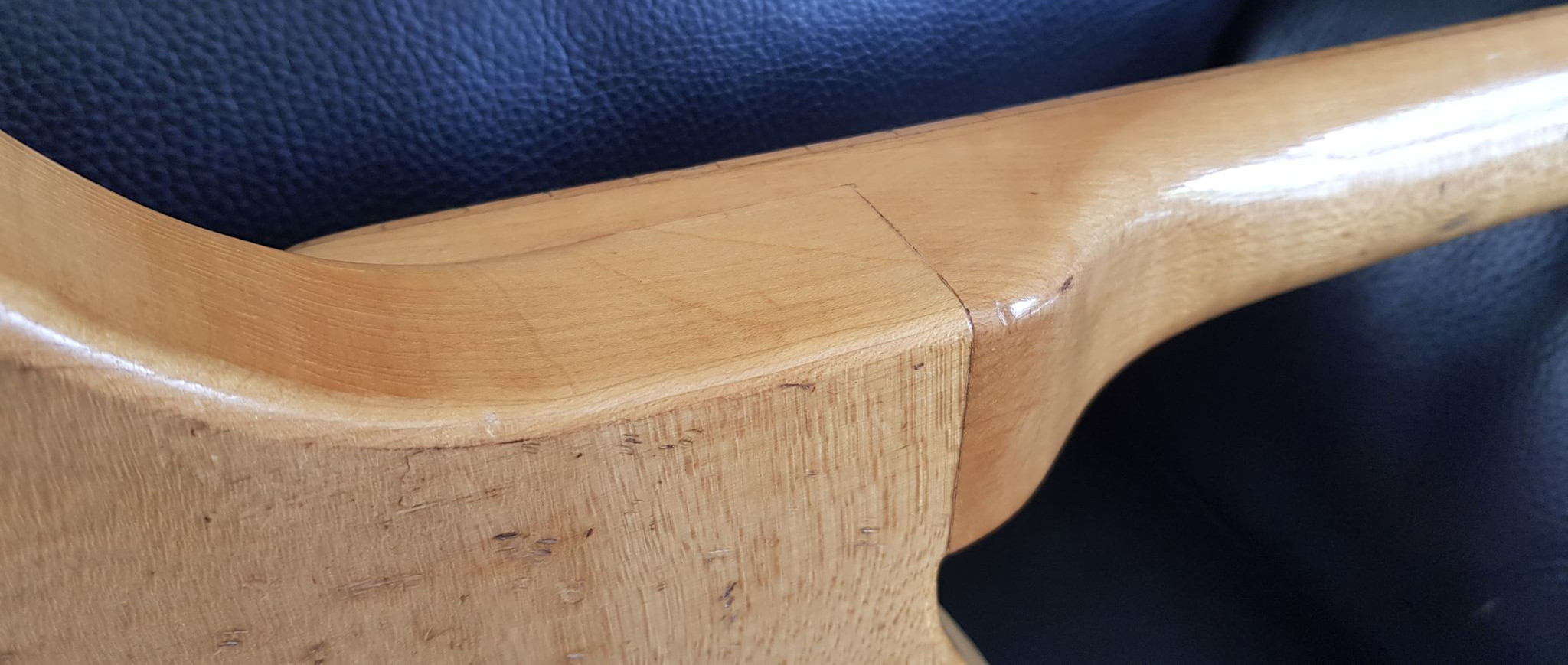

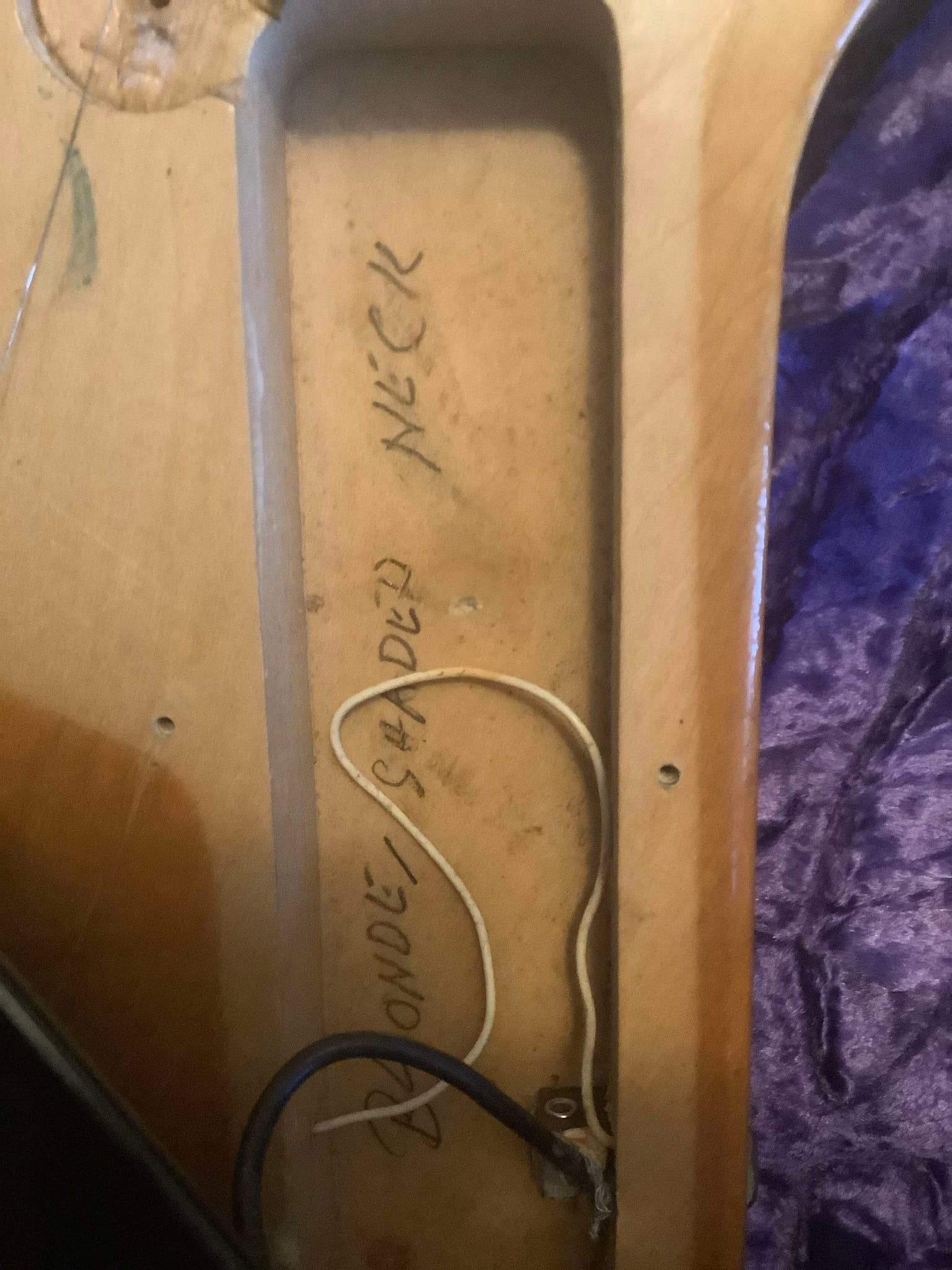

It is a myth that it was routed out from the back - It was most definitely routed from the top. The red flick switch was quite a deep affair though, and the small amount of deep routing under the switch, only left a couple of millimetres of wood behind it - so maybe, they thought the plastic would add a bit more substance to the back - just in case. It does make it quite heavy though. Burns also tended to "glue and screw" his neck joints - so the plastic may also be covering 4 screw heads by the neck joint - who knows? On later guitars, the screw heads were hidden under the fingerboard.

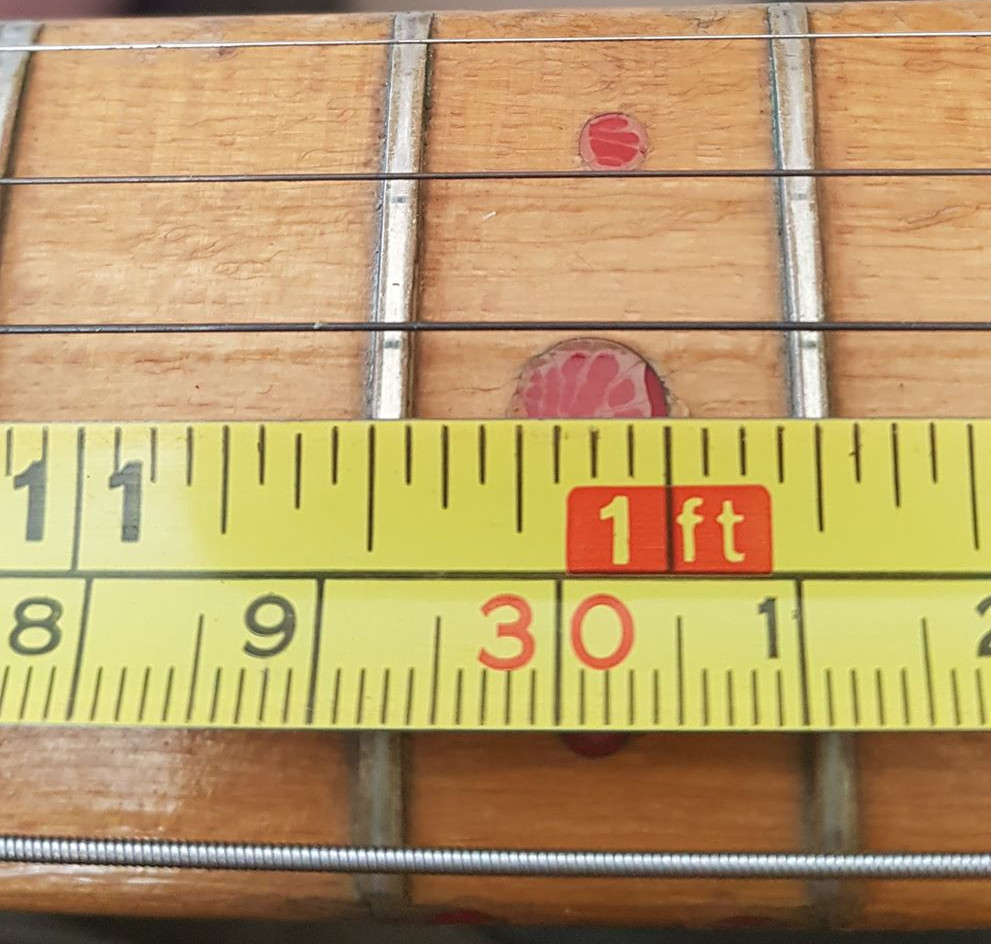

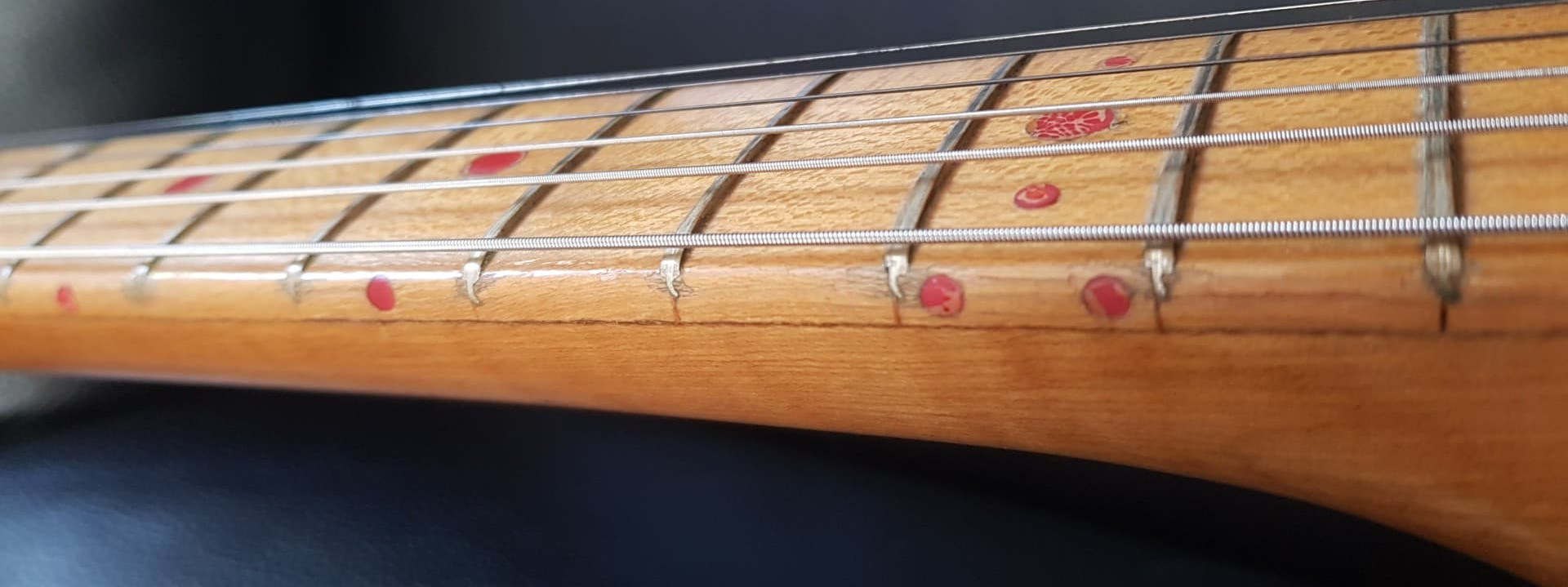

The RP1G or Superstreamline - whatever it is/was called - is actually quite a comfortable/useable guitar and balances nicely with easy reach etc... It was only the woodworking/build quality that lets it down really, and the fretwork/material was a joke - definitely hand made and largely un-playable - but this is understandable at this early stage. It is something that I hope to re-issue at some time with an authentic build - but with a better fingerboard and adjustable bridge etc.... I'll get around to it one of these days. - Ade Turner



Pictured above, clockwise form top left:

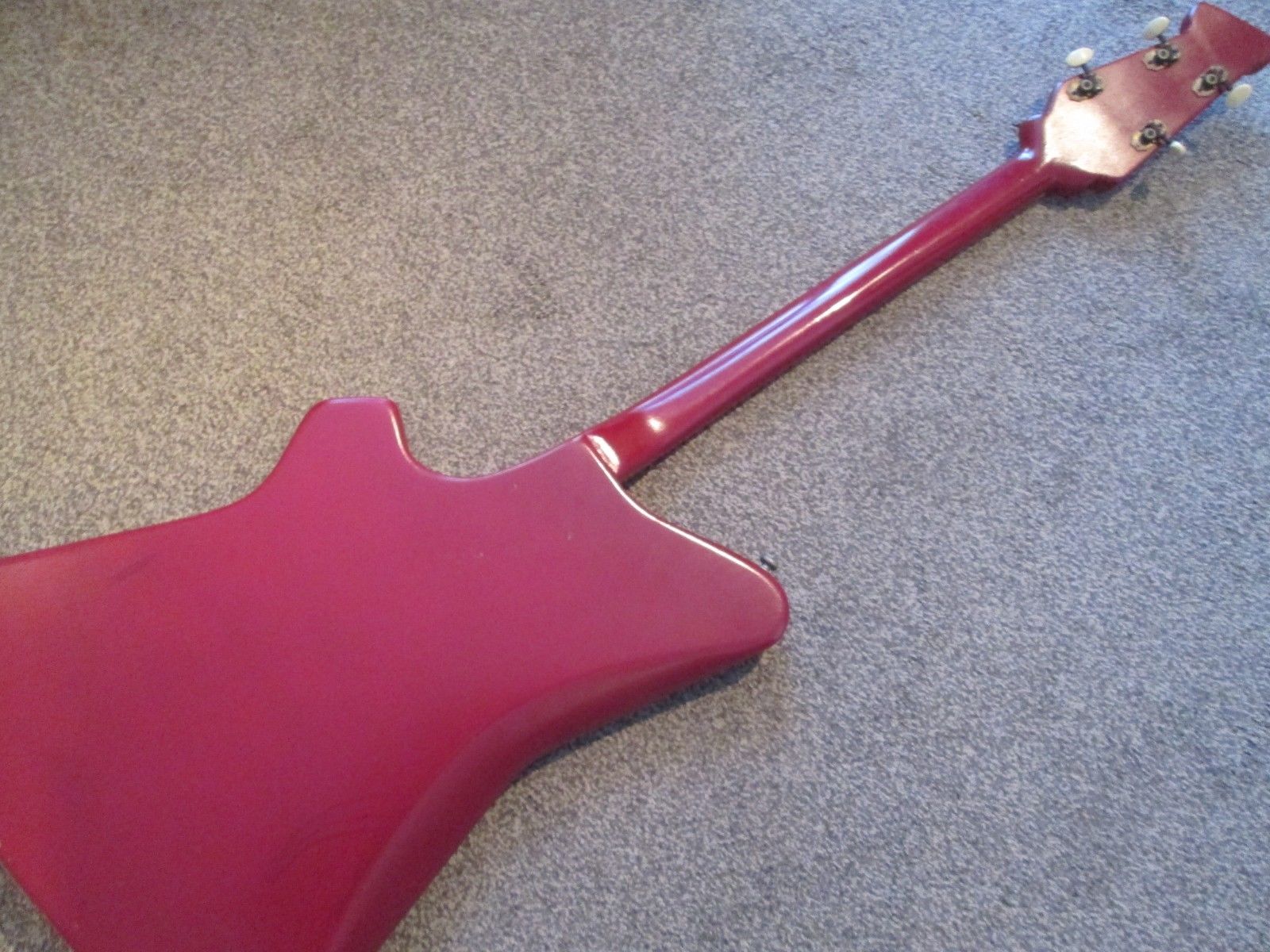

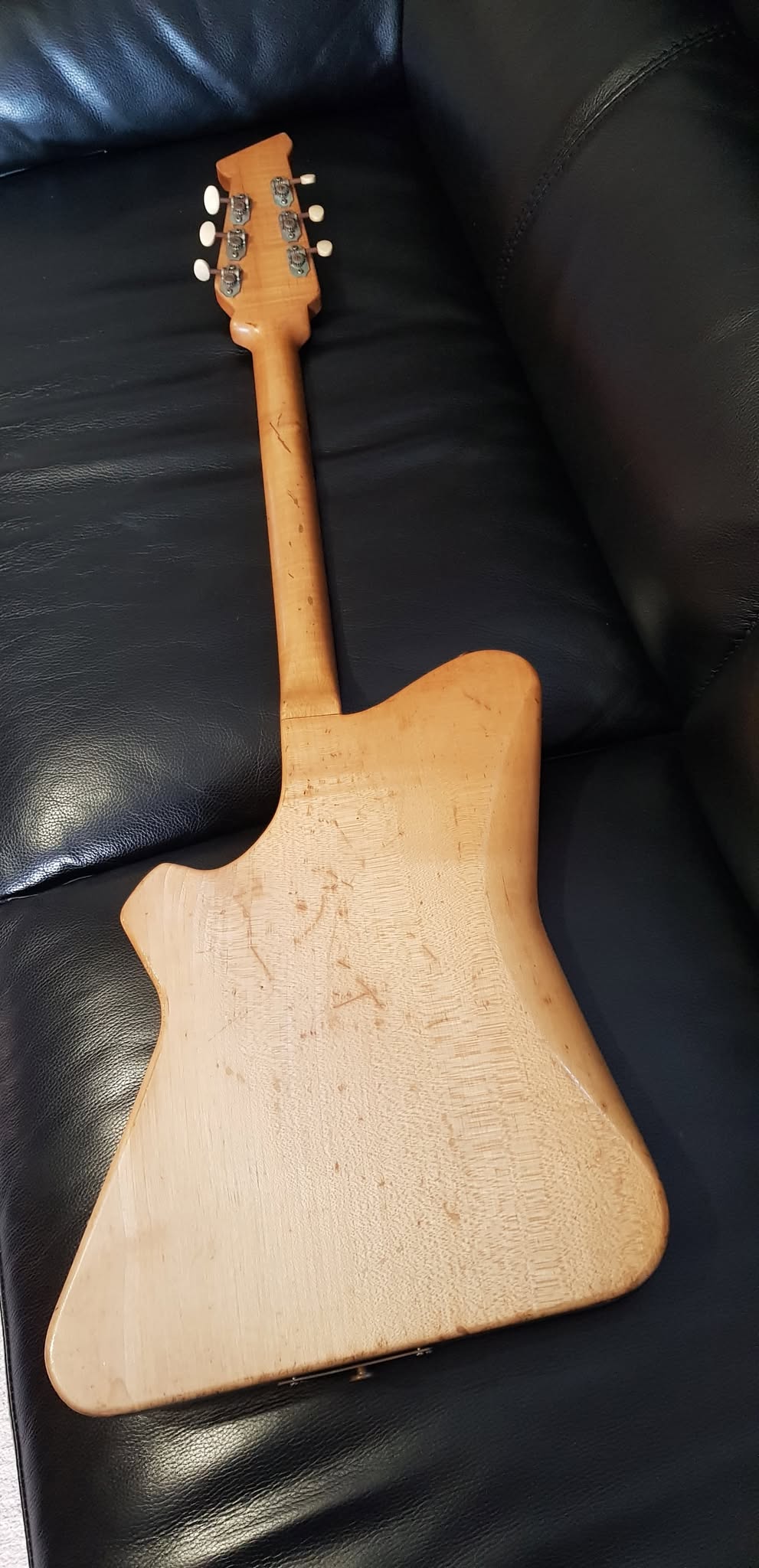

Dallas Tuxedo, Burns-Weill RP1G (rear), Fenton-Weill Deluxe



Internal view of an RP1G's neck pickup





Rocco's RP1G:

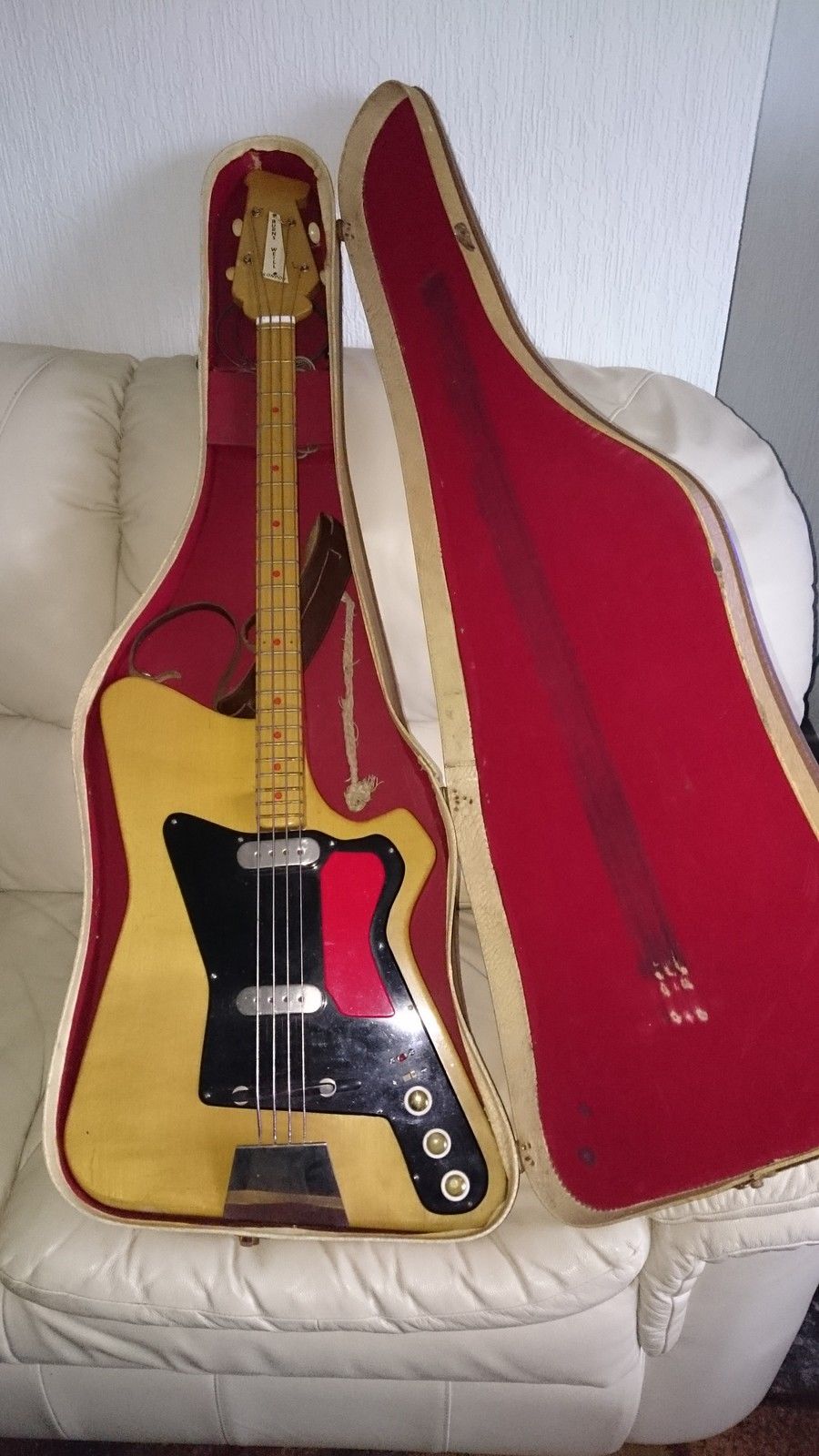

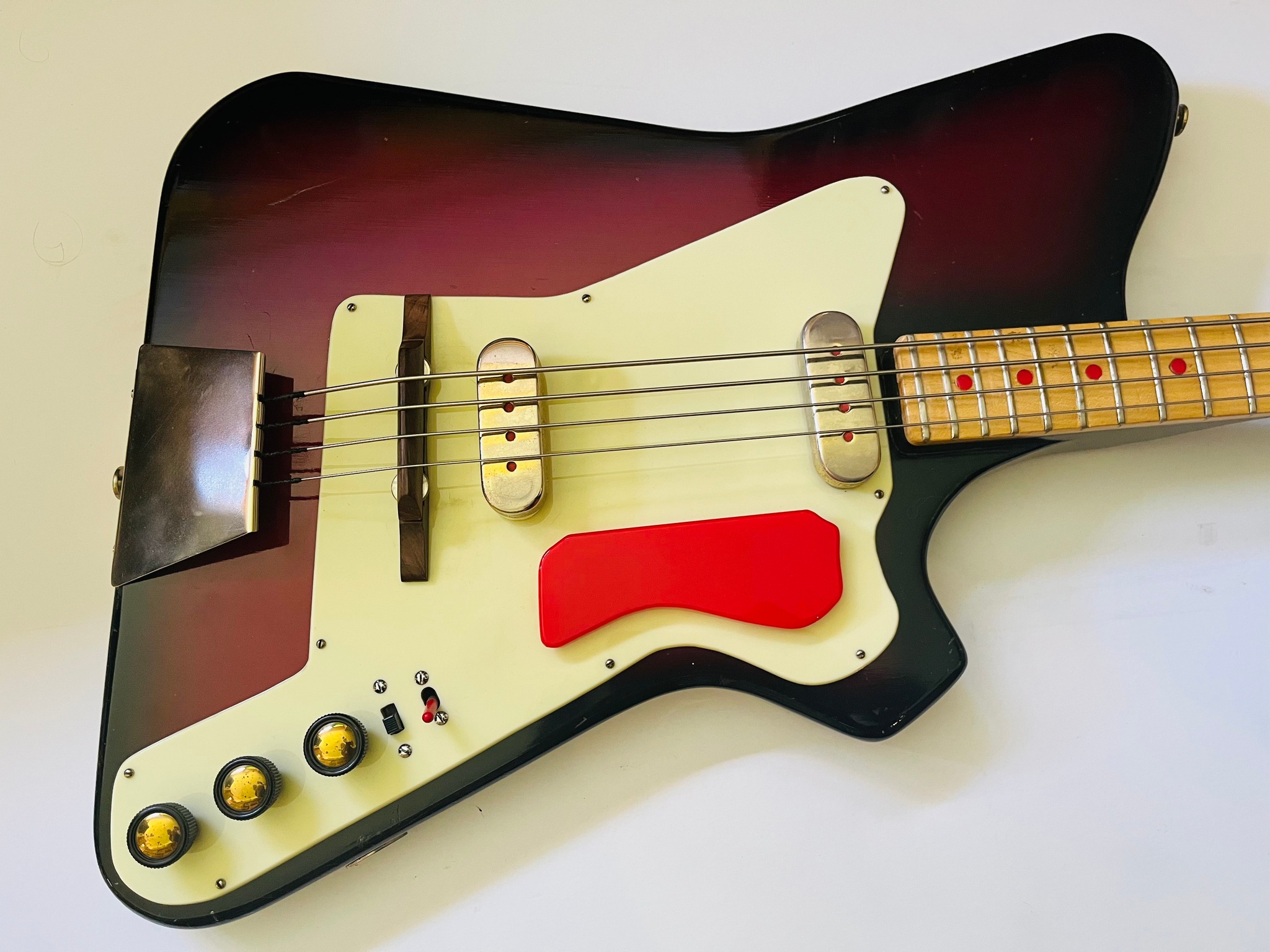

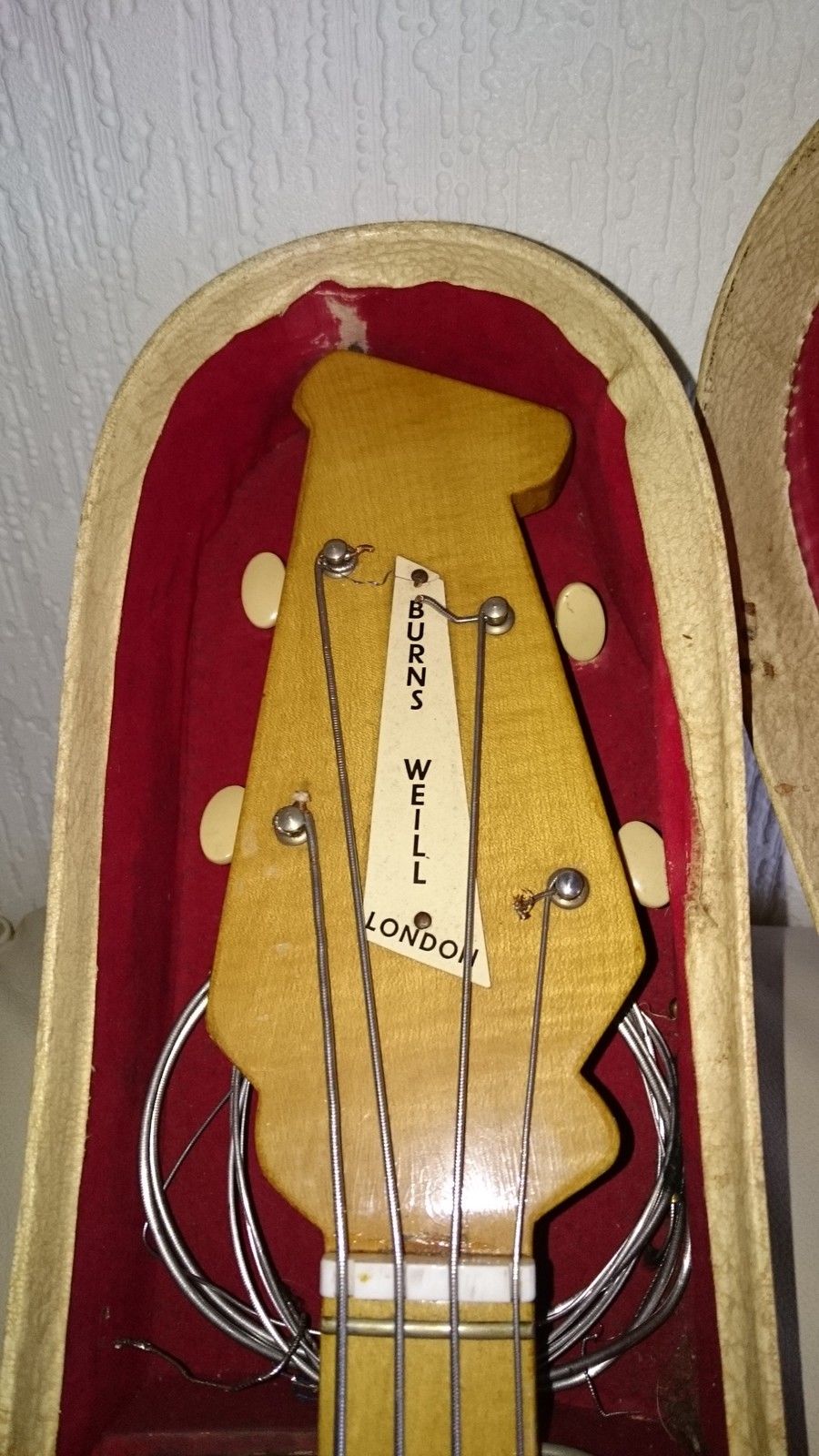

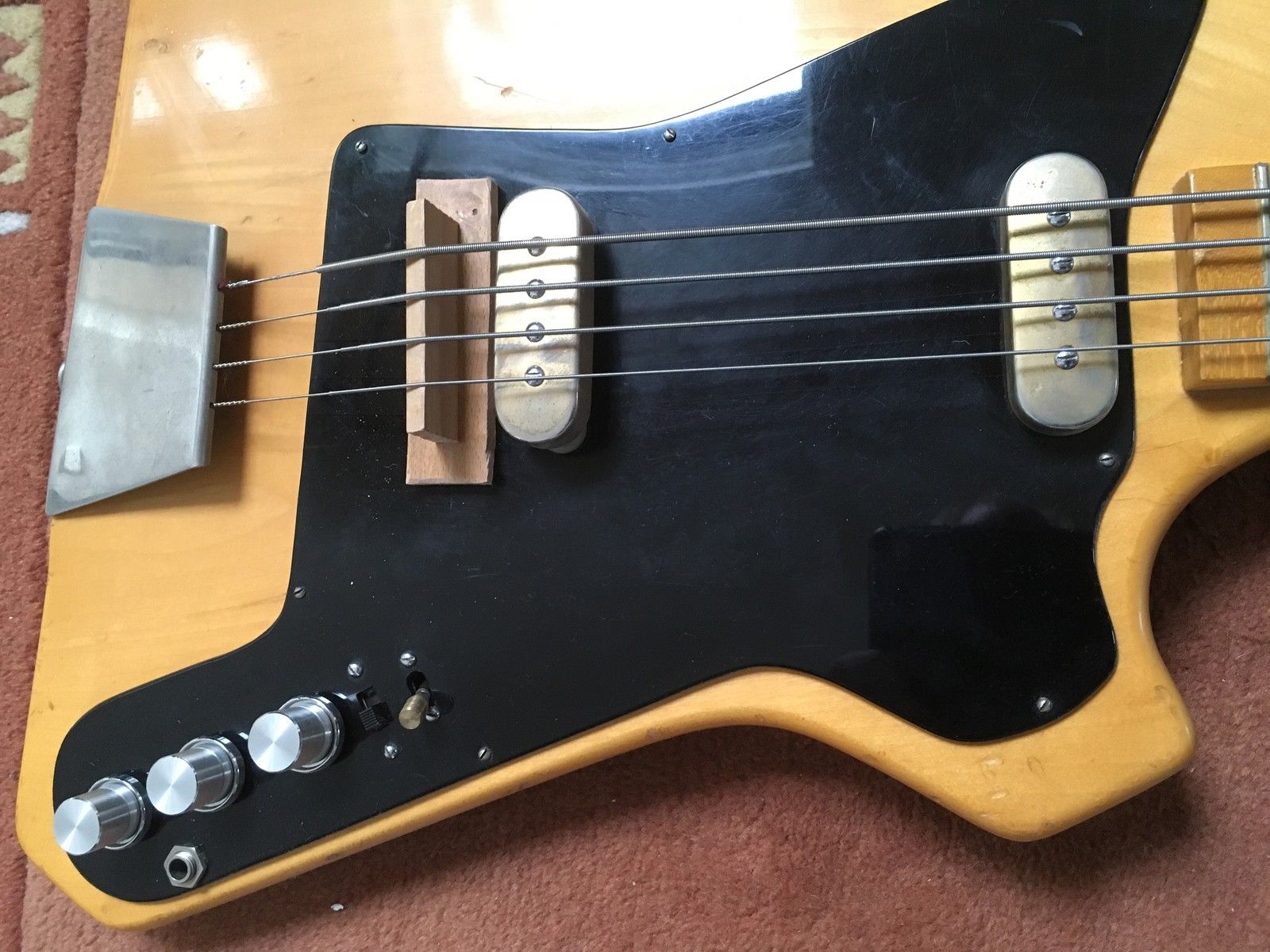

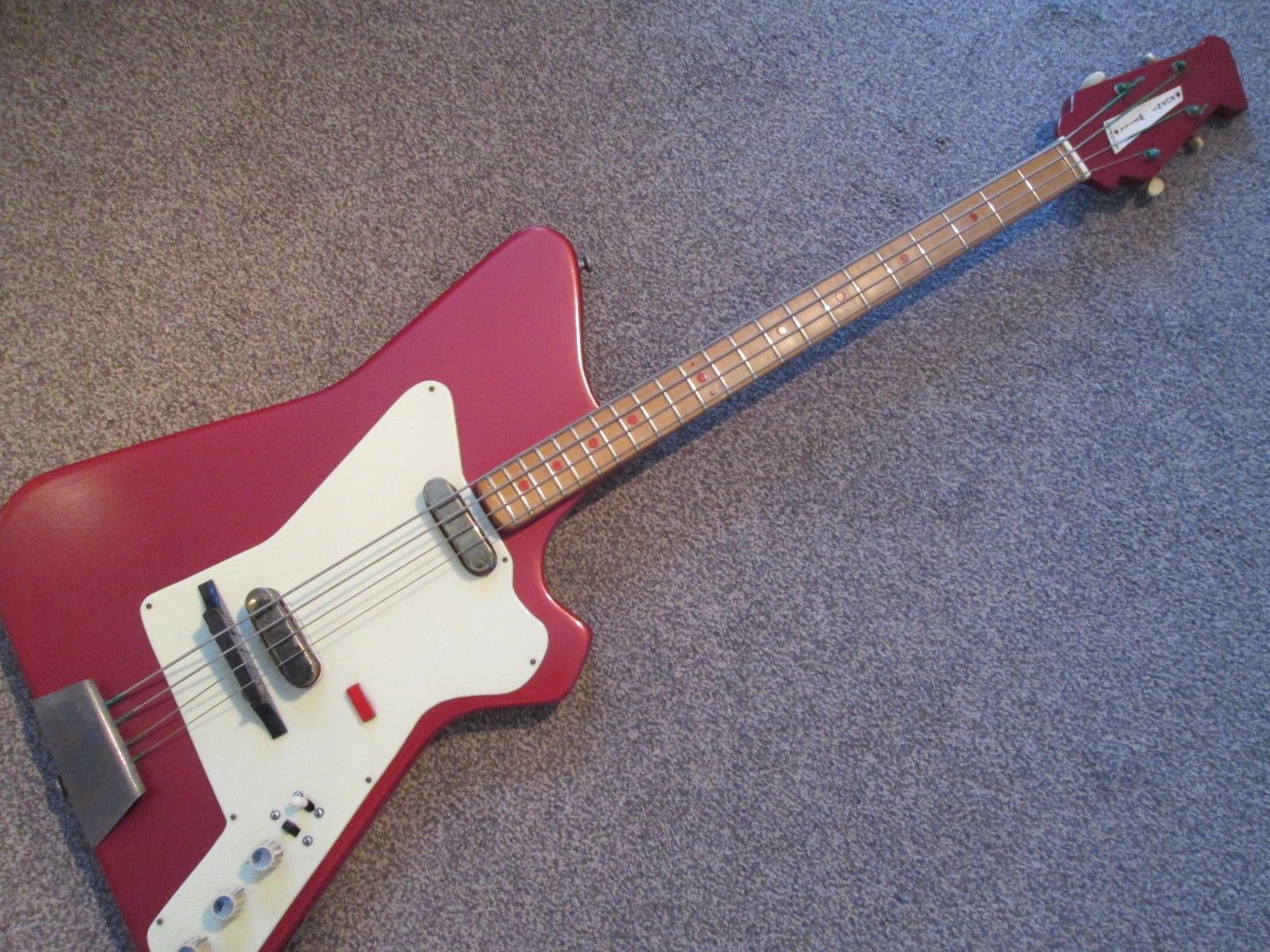

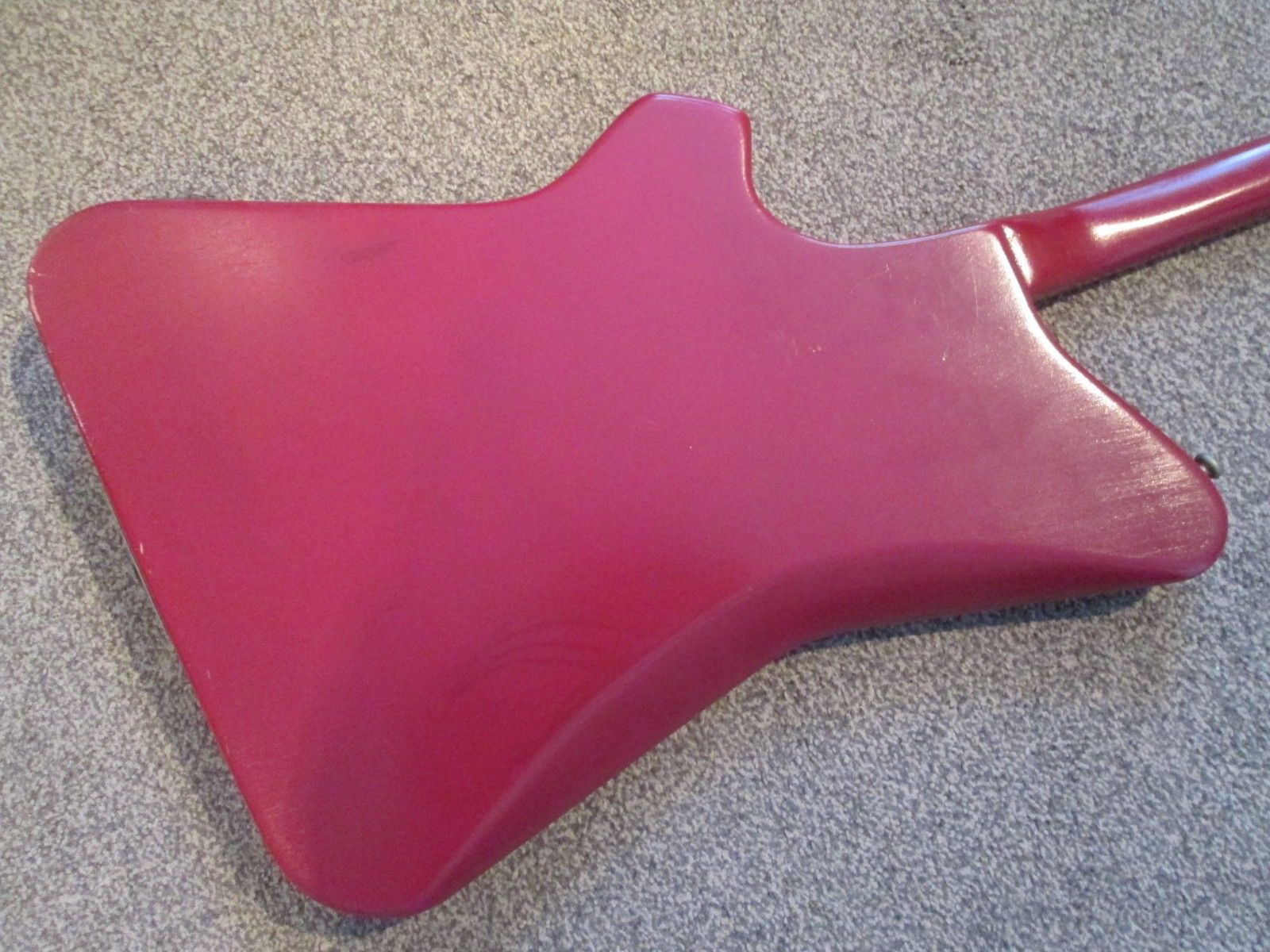

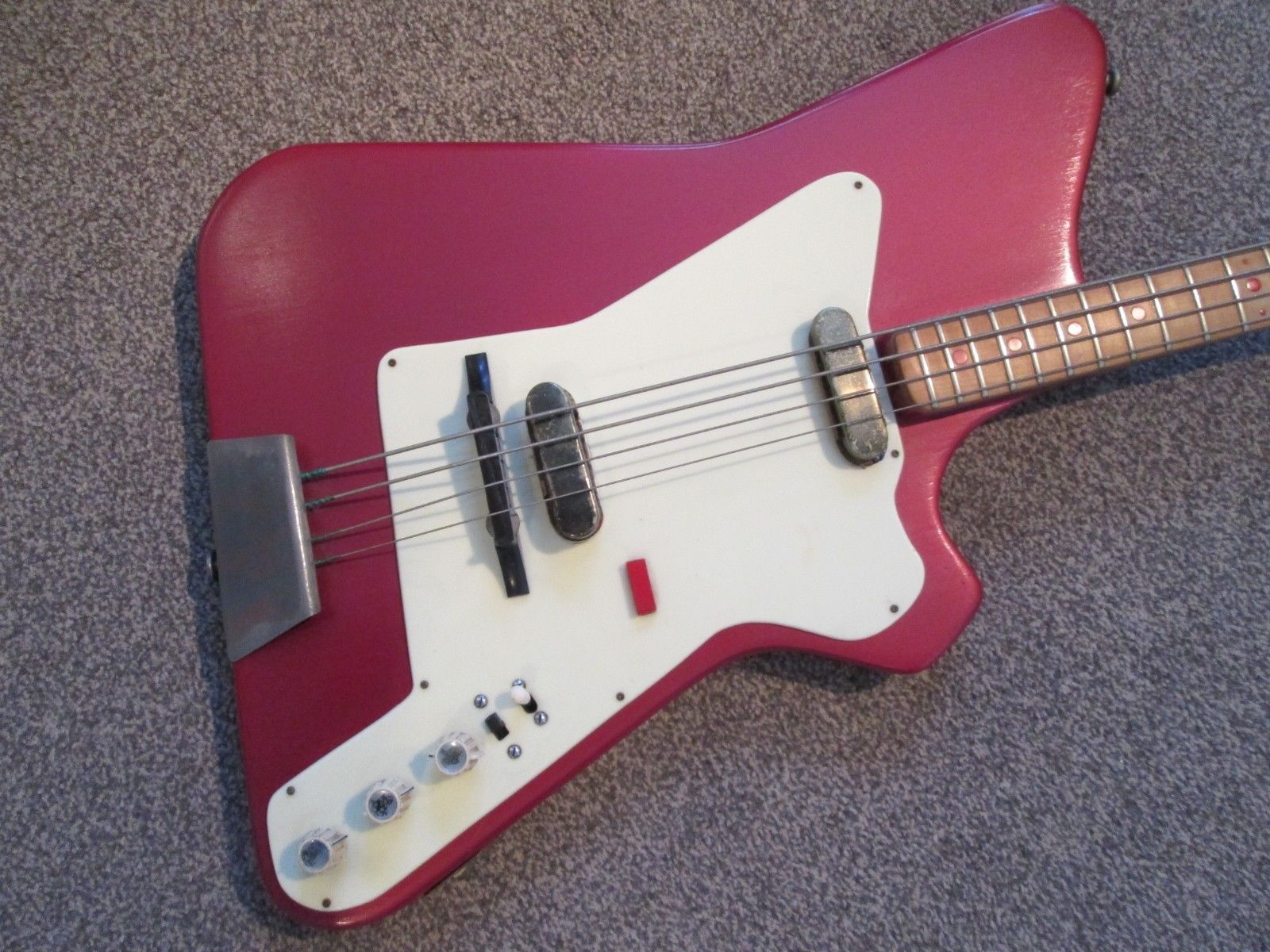

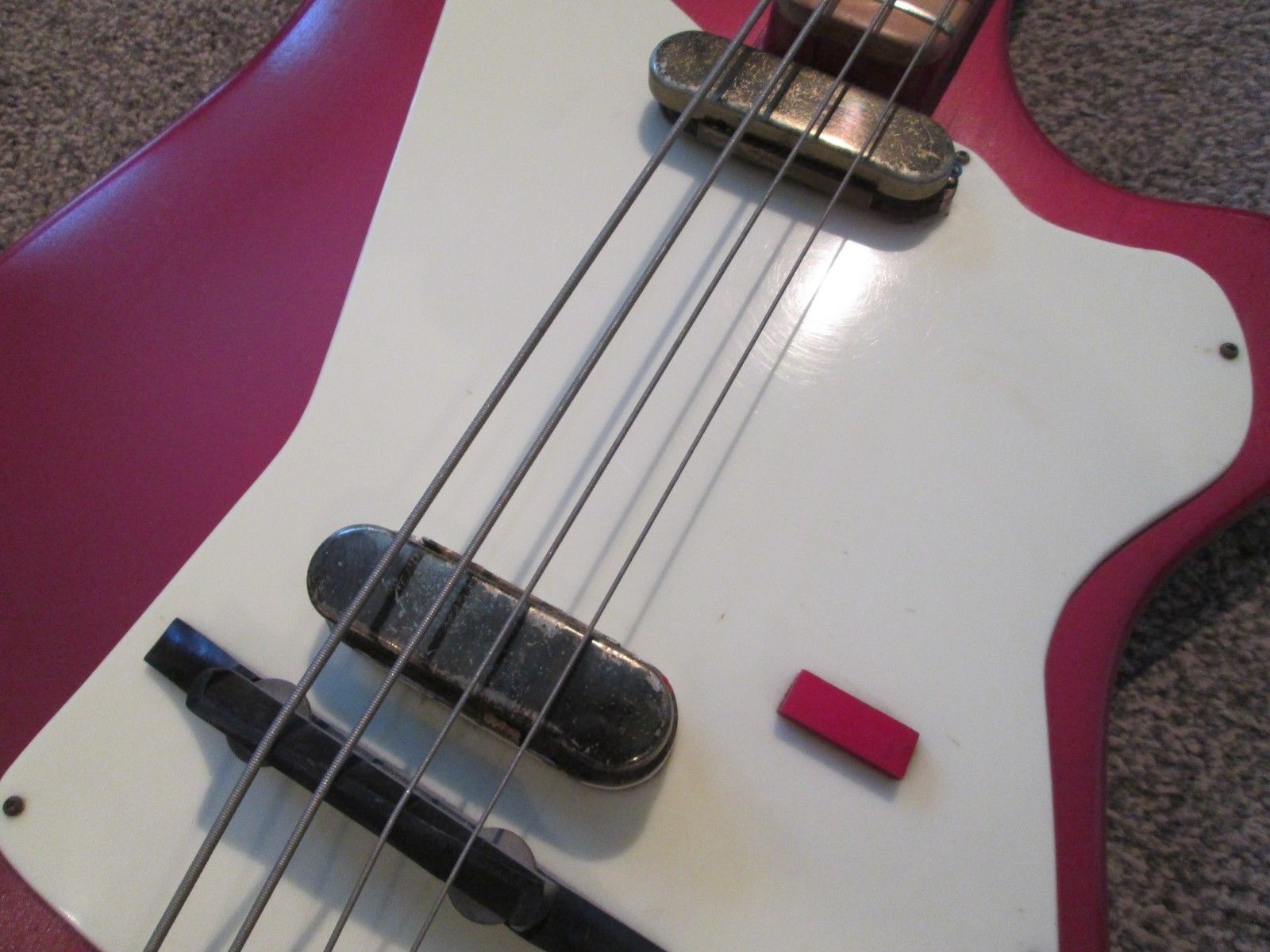

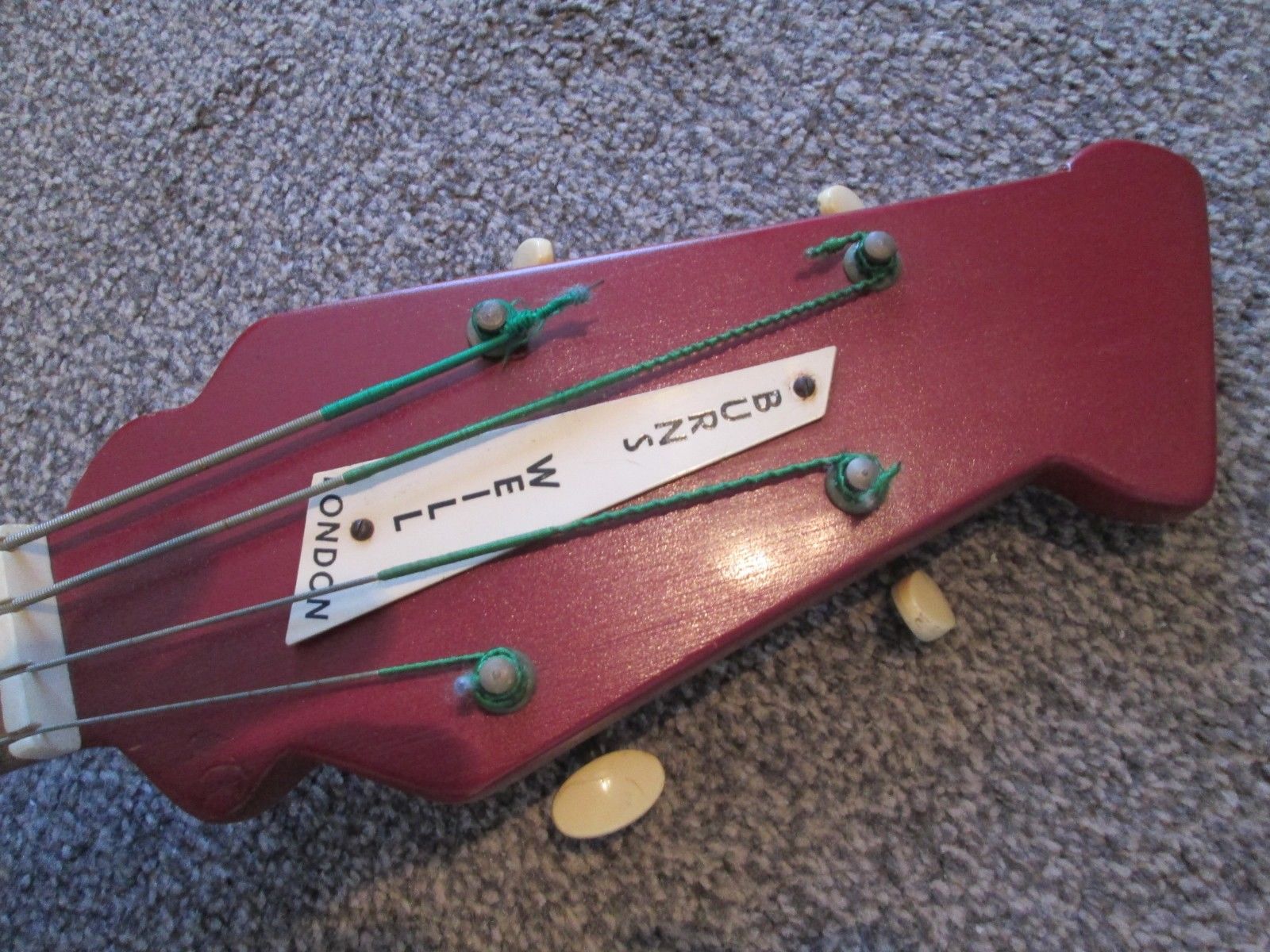

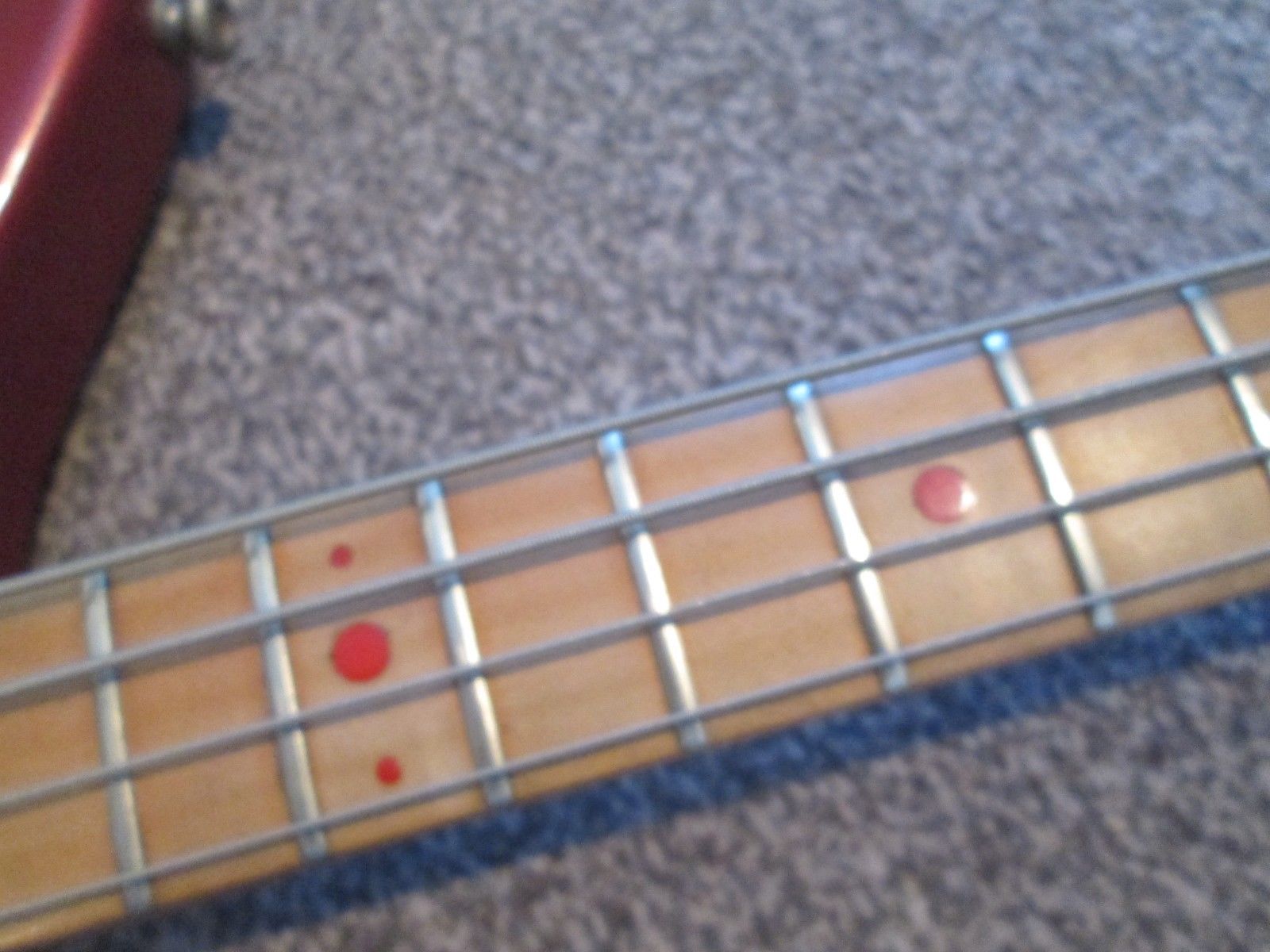

A Refinished RP1B Bass



Bobby Oats playing an RP1G in Red E Lewis and the Red Caps c.1960

The other guitarist is Jimmy Page, on a Grazioso Futurama
